DMX10-53
The DMX10-53 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 5 and 3pin XLR DMX outputs. Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation. The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5pin, 5/3pin combo XLR configurations.
SPECIFICATIONS

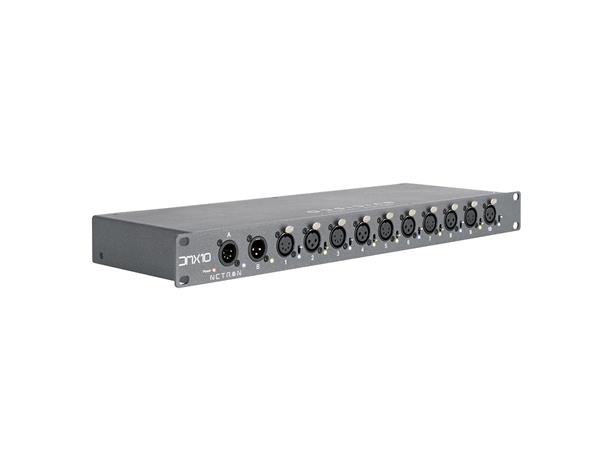

Front
5 & 3pin DMX Input
5 x 5 & 5 x 3 pin Opto-Isolated DMX Outputs

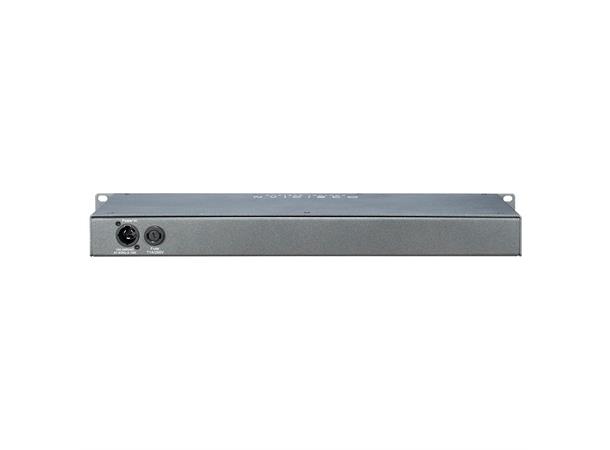

Back
Locking Power In
PHYSICAL
Length: 482.5 mm (19 in.)
Width: 146 mm (5.7 in.)
Height: 44 mm (1.7 in.)
Weight: 1.82kg ( 4.0 lbs)
ELECTRICAL
100-240 V nominal, 50/60 Hz
INCLUDED ITEMS
1.5m Locking power cable
