NX-P Playback

Full playback section for ONYX

Varenr: 1330000076
30 108,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
-+
1 på lager
BeskrivelseTeknisk infoSupport
Beskrivelse

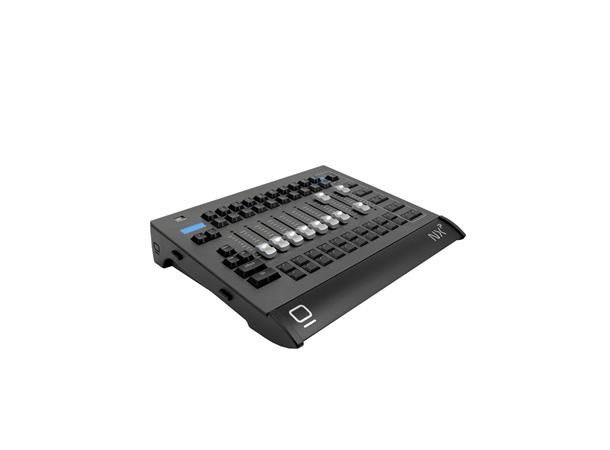

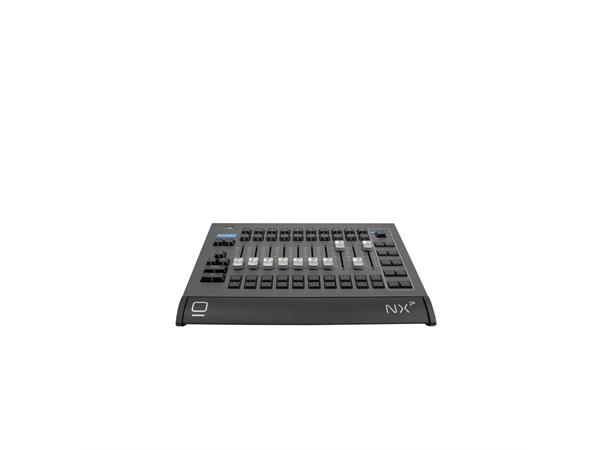

The NXP is a motorized fader wing for ONYX. The ideal expansion for the NX1 console and ONYX PC systems, it replicates the full playback section of the NX1 console. Four integrated DMX ports provide instant connectivity to the lighting system.

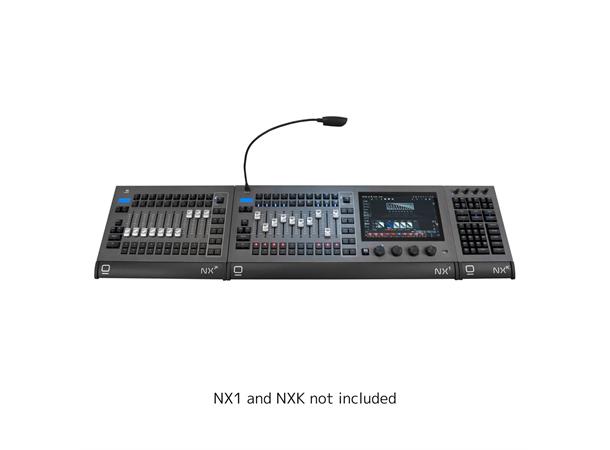

Multiple NXP wings can be connected to any ONYX console or PC system, expanding direct access with 20 playbacks at a time. The flexible button array can be mapped to playback control or powerful function keys. The NXP replicates the layout and all functionality of the NX1 and NX4 console surfaces so all operation is seamless and intuitive.
A simple magnetic alignment system allows attachment on any side of the NX1 console or NXK command pad. The keypad and playback wing are part of the ONYX platform and can be utilized with all other NX devices or ONYX on any PC system.



TECHNICAL DATA


FEATURES

Portable and compact motorized playback wing
10 Motorized Playbacks, 10 Playback / Function Hybrids, 4 Encoders, Master Go section
4x DMX Ports integrated
ONYX Nova+ License (4 Universes + MIDI/OSC/ Timecode support)



SPECIFICATIONS
SURFACE

10x 60 mm motorized playback faders, each with 4x function-assignable buttons
10x customizable playback or multi-function keys
Playback Select button
Master Go section with Go, Pause, Snap and Release

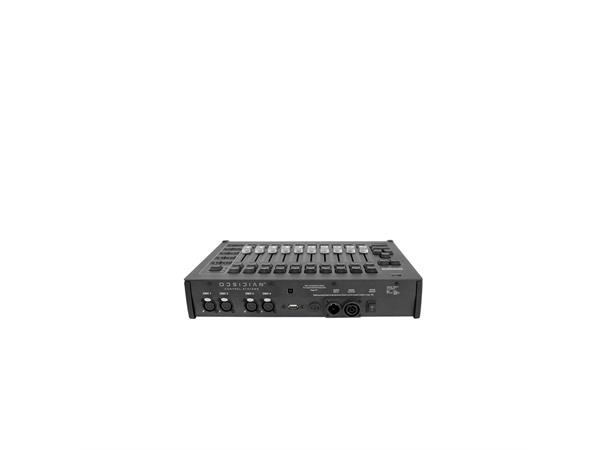

CONNECTIONS

4x DMX / RDM Universe In/Out: 5pin locking XLR
IP65 Locking Power In
1x USB-B 2.0 input

PHYSICAL

Length: 298.5 mm (11.75 in.)
Width: 373mm (14.7 in.)
Height: 71 mm (2.8 in.)
Weight: 4.5 kg (9.9 lbs.)

ELECTRICAL

100-240 V 50/60 Hz

INCLUDED ITEMS

LED USB desk lamp
Dust Cover
USB 3.0 recovery drive
IP65 Locking power cable
