FEATURES

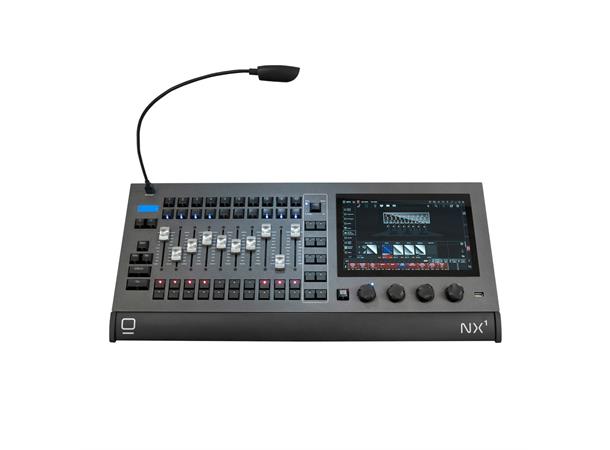

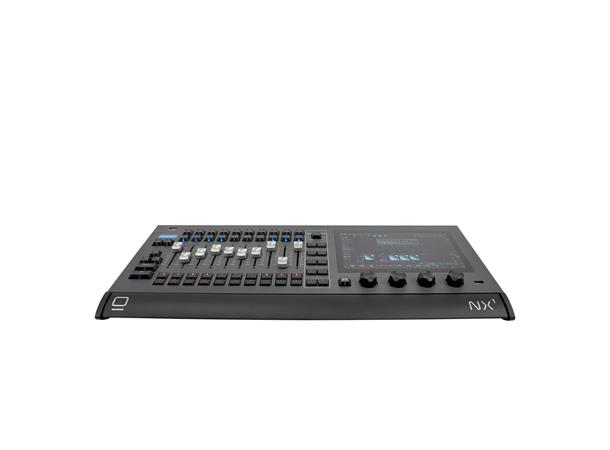

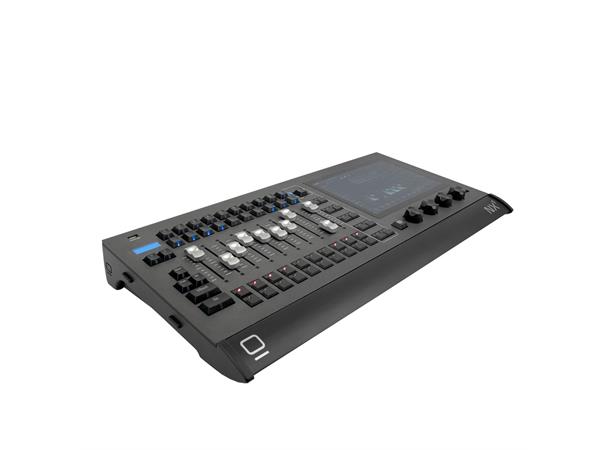

Portable and compact fully featured lighting console
10.1” Full HD multi touch screen, 1x external touch display
ONYX Essential License (8 Universes)
Fully integrated industrial processing
10 Motorized Playbacks, 10 Playback / Function Hybrids, 4 Encoders, Master Go section
SPECIFICATIONS
SURFACE
10x 60 mm motorized playback faders, each with 4x function-assignable buttons
10x customizable playback or multi-function keys
Playback Select button
Master Go section with Go, Pause, Snap and Release
4x digital rotary encoders with push function and status LED for fixture parameter control
Virtual Keypad control
HARDWARE
Industrial 10.1" TFT 16:9 touchscreen (1920x1200px)
250 GB NVMe M.2 storage drive
Industrial motherboard with Intel CPU
Quiet thermal design using advanced copper heat pipe coolers
8 GB DDR4 RAM
Integrated graphics processor
Windows 10 IoT Embedded Operating System
OS installation by USB 3.0 storage device
Supports Windows USB touchscreens

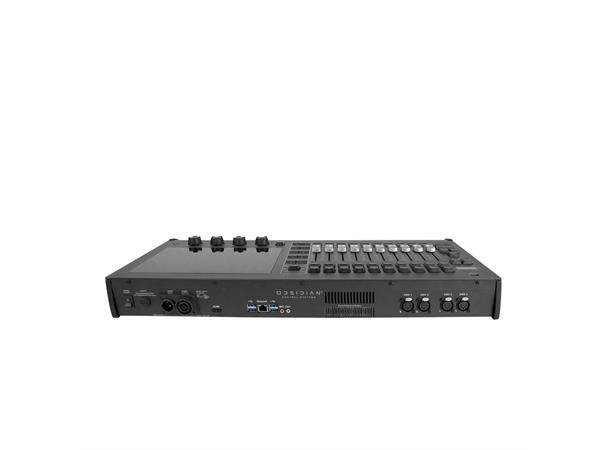

CONNECTIONS
4x DMX / RDM Universe In/Out: 5pin locking XLR
External Display: 1x HDMI
Network: 1x Gigabit RJ45 Ethernet for Art-Net, sACN and ONYX X-Net
Storage and Peripherals: 4x USB 3.0, 1x USB 2.0
Audio Out, Mic In: 2x 3.5mm Jack
Desk Lamp: USB 5V
IP65 Locking Power In
PHYSICAL
Length: 298.5 mm (11.75 in.)
Width: 636 mm (25 in.)
Height: 71 mm (2.8 in.)
Weight: 8.1kg (17.8 lbs.)
ELECTRICAL
100-240V 50/60 Hz, 104W
INCLUDED ITEMS
LED USB desk lamp
Dust Cover
USB 3.0 recovery drive
IP65 Locking power cable
