The DMX10-5 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 5pin XLR DMX outputs. Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation.
The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5 and 3pin XLR configurations.
SPECIFICATIONS

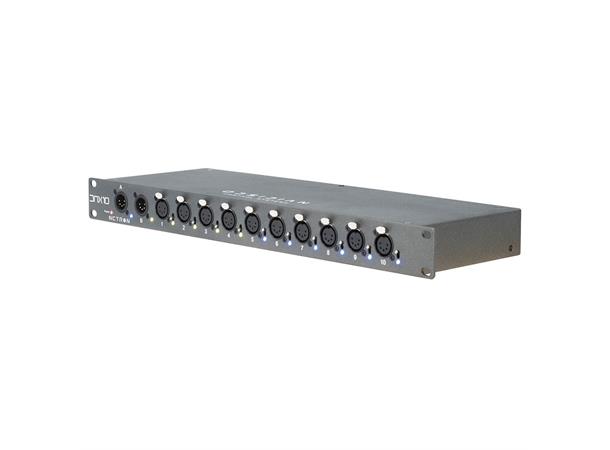

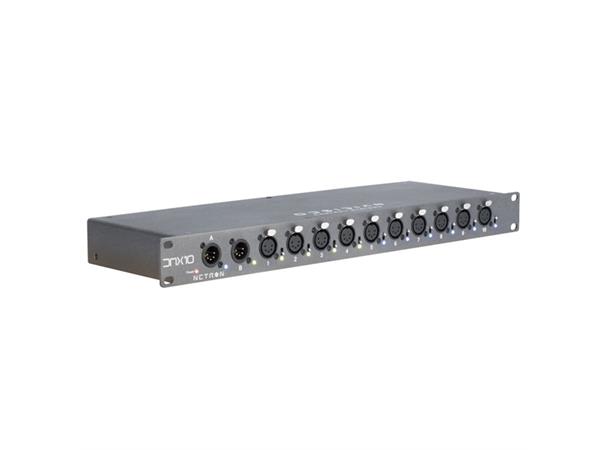

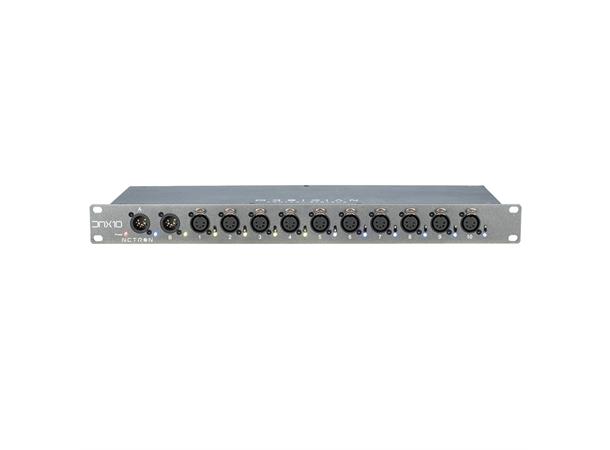

Front
(2) 5pin DMX Input
(10) 5pin Opto-Isolated DMX Outputs

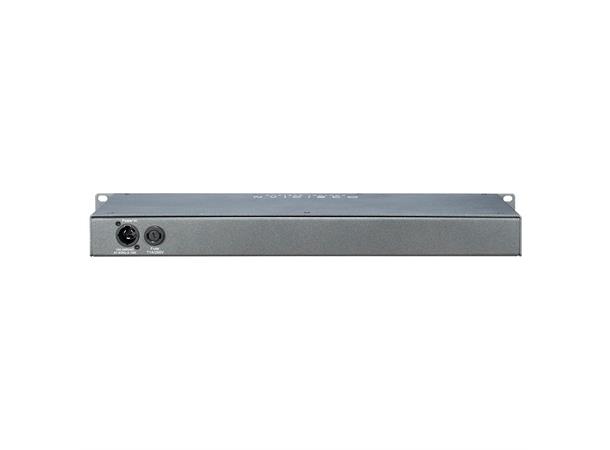

Back
Locking Power In
PHYSICAL
Length: 482.5 mm (19 in.)
Width: 146 mm (5.7 in.)
Height: 44 mm (1.7 in.)
Weight: 1.82kg ( 4.0 lbs)
ELECTRICAL
100-240 V nominal, 50/60 Hz
INCLUDED ITEMS
1.5m Locking power cable
