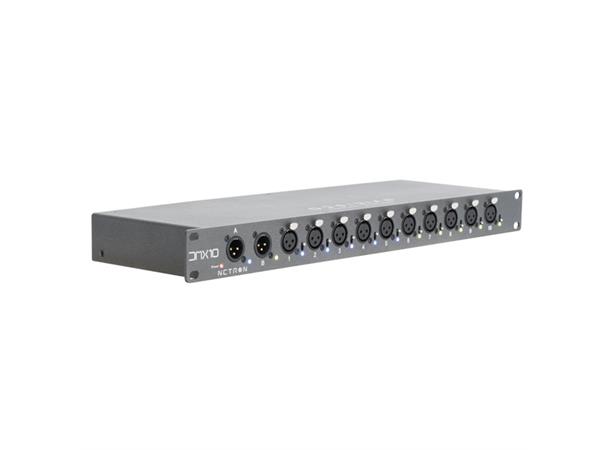

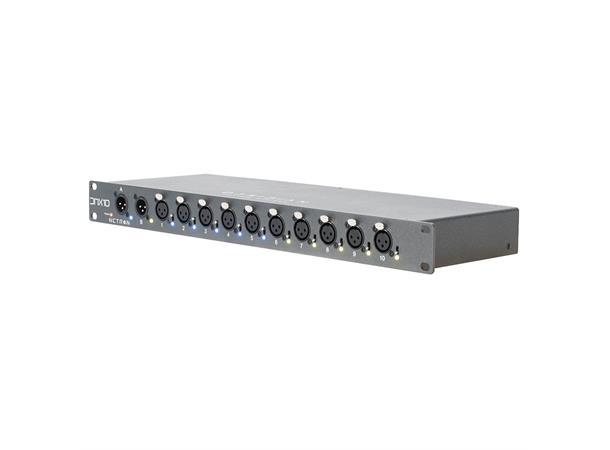

The DMX10-3 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 3pin XLR DMX outputs. Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation.

The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5 and 3pin XLR configurations

SPECIFICATIONS

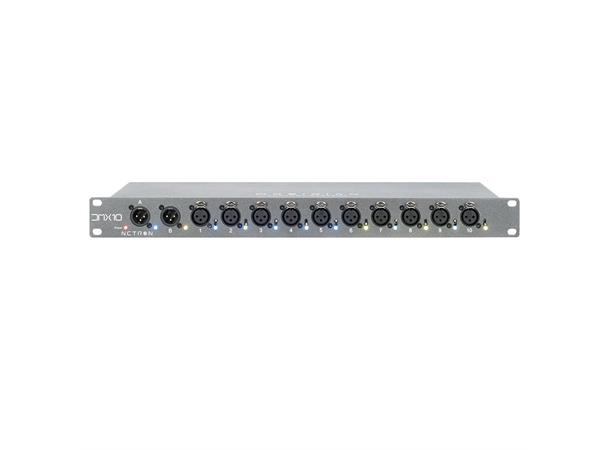

Front

(2) 3pin DMX Input

(10) 3pin Opto-Isolated DMX Outputs

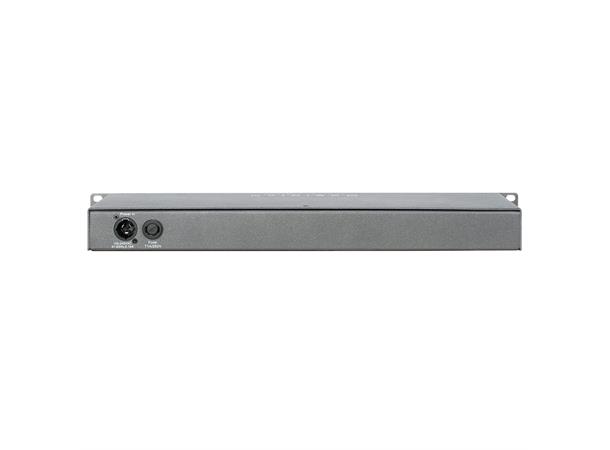

Back

Locking Power In

PHYSICAL

Length: 482.5 mm (19 in.)

Width: 146 mm (5.7 in.)

Height: 44 mm (1.7 in.)

Weight: 1.82kg ( 4.0 lbs)

ELECTRICAL

100-240 V nominal, 50/60 Hz

INCLUDED ITEMS

1.5m Locking power cable
