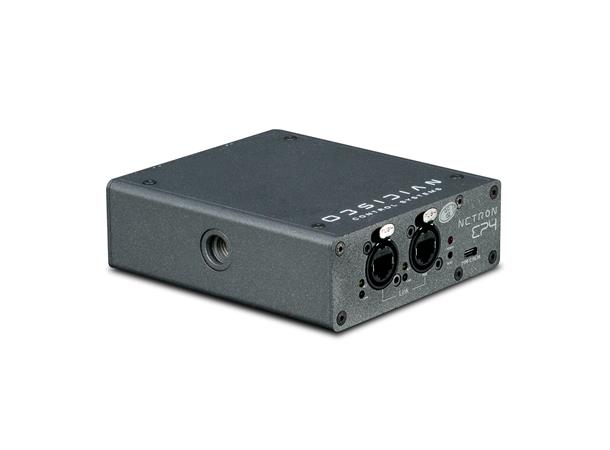

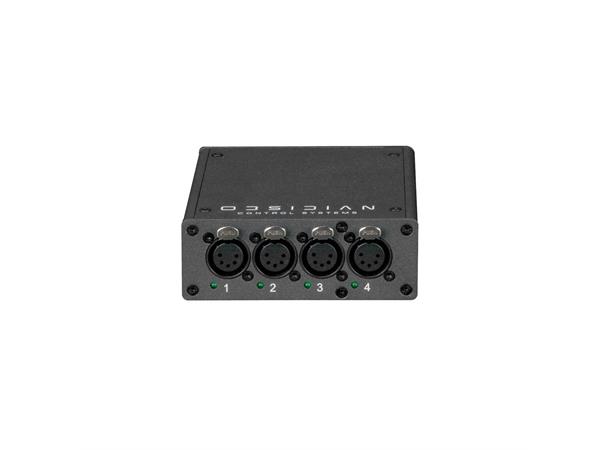

The Netron EP4 is a compact Ethernet to DMX gateway with four RDM compatible ports. It is configurable via its internal web remote and powered over Ethernet or via the USB-C connection.
"
FEATURES
RDM, Artnet and sACN support
Factory and user presets for plug and play setups
POE or USB-C powered
Remote configuration via internal webpage
Powder-coated compact aluminum housing

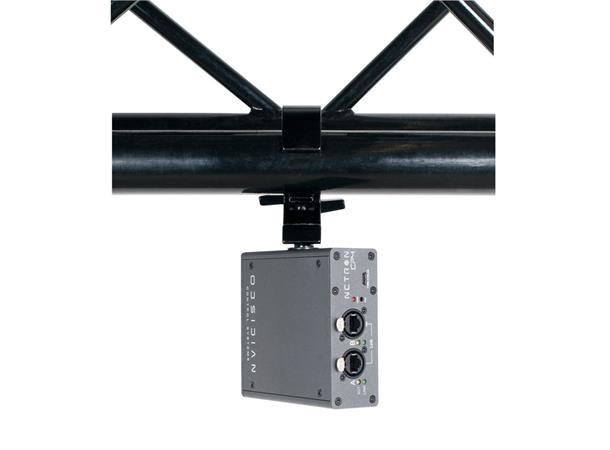

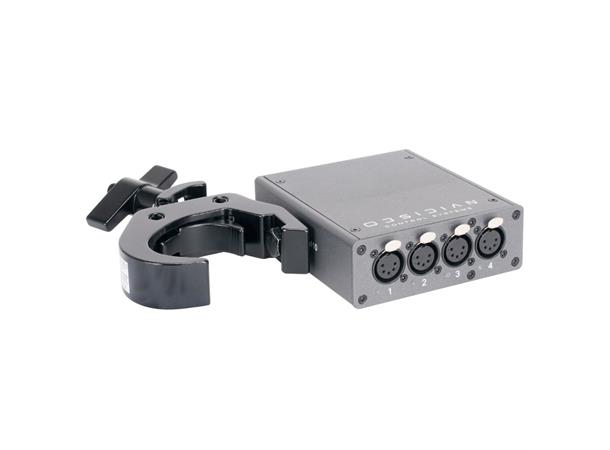

Truss-mount (M10 or M12 mounting hole)

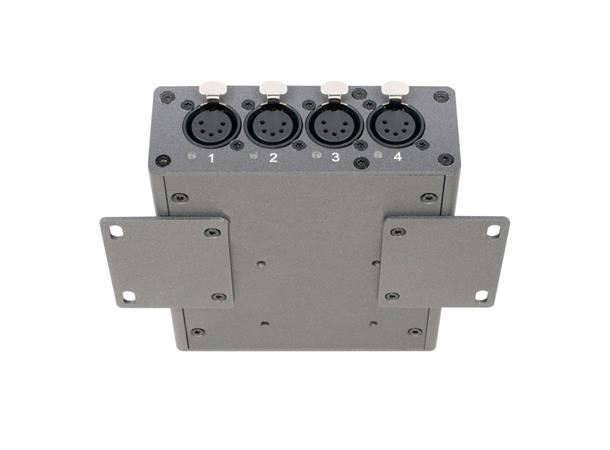

Wall-mount horizontal or vertical (included)

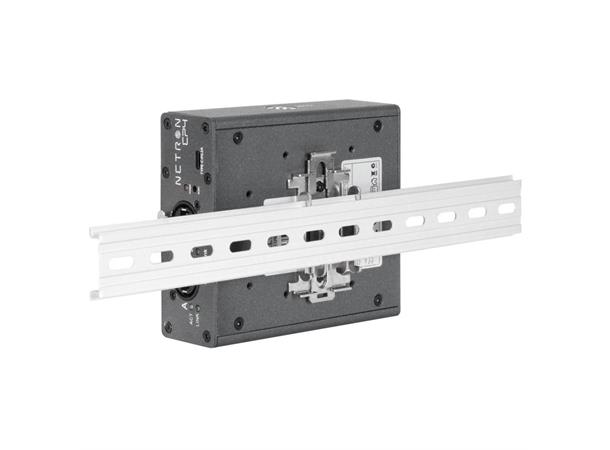

DIN Rail horizontal or vertical (included)
CONNECTIONS

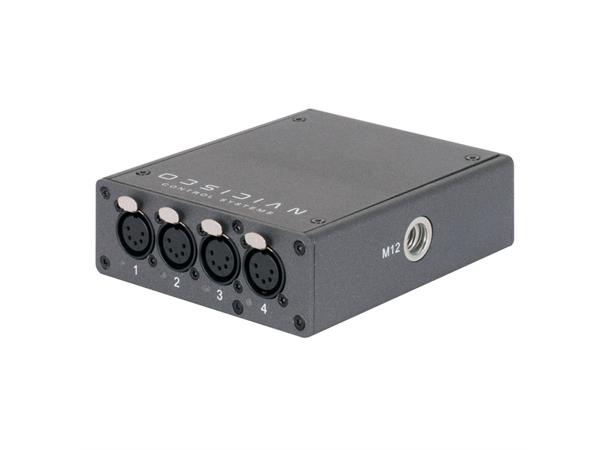

(4) Locking 5pin Opto-Isolated DMX XLR Connector Outputs

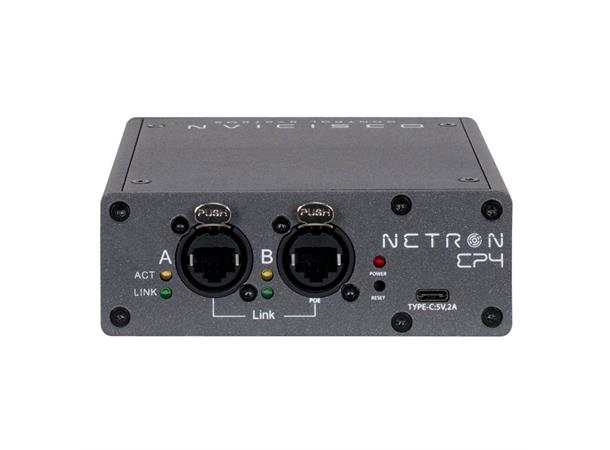

(2) Locking RJ45 Ethernet network Connector In/Out
USB-C power option
SIZE / WEIGHT
Length: 5.5” (140mm)
Width: 4.6” (118mm)
Vertical Height: 1.6” (42mm)
Weight: 1.1 lbs. (0.5kg)
ELECTRICAL
USB-C 5V
POE 802.3af
INCLUDED ITEMS
(2) Wallmount plates
(2) Din-Rail clamps
USB-C Cable
"
