Paragon M

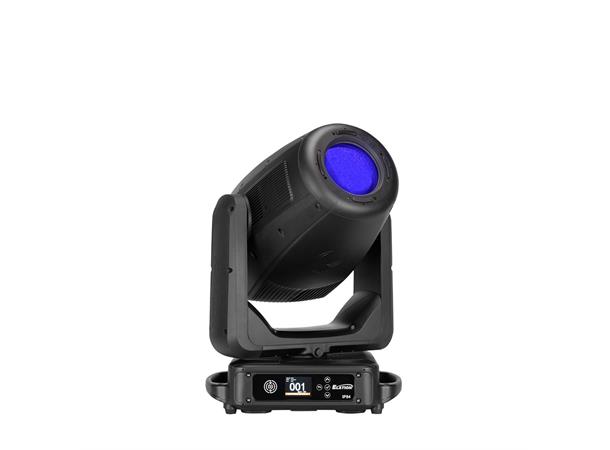

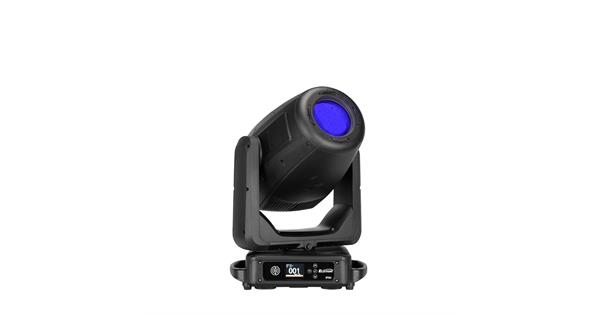

The PARAGON M™ is a powerful IP54-rated LED profile fixture with outstanding projection and beam qualities in a compact and lightweight form.

Powered by its custom-designed Variable CRI LED engine, the PARAGON M provides over 37000 lumens (at CRI 80), making it ideal for applications requiring superior output, bright and powerful beams, quiet operation, stunningly precise gobos, colors, and framing cuts.

The PARAGON M harnesses Elation’s TruTone variable CRI technology to empower designers to fine-tune any application's light output and color accuracy. From CRI 70 to CRI 93, its true variable color fidelity enriches mixed tones with infinite adjustments to the underlying white spectrum. Alongside these innovations, PARAGON M features Elation’s fastest and quietest CMY color mixing arrays for flawless performance.

Equipped with a robust FX package, the PARAGON M includes two wheels of seven rotating glass gobos, a complete animation wheel, overlapping dual prisms, dual frost options, and a high-speed iris. The animation wheel’s interchangeable design supports custom patterns or an optional seven-position gobo disc. The PARAGON M also utilizes a zoom range of 4.5° to 52° , a 240° indexable framing system, 45° blade angles that deliver precise beam shaping, and full-blackout shutter cuts that ensure it makes a bold visual statement in any setting.

The PARAGON M ships in a cardboard box with a custom-fitted polyurethane foam FIL (Foam In Lay) insert that easily fits into a custom flight case (not included), providing enhanced impact protection during transport.

SOURCE High Efficiency 900W 6,500K Variable CRI White LED Engine 30,000 Hour Average LED Life* *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (OnOff Cycling), Control, and Dimming. PHOTOMETRIC DATA 37200 Total Lumen Fixture Output @ CRI 80 TruTone variable CRI up to CRI 93 Front Lens: Profile Lens (standard) Zoom Range 4.5° - 52° Beam Angle 4° - 48.6° Field Angle 4.4° - 52° Cutoff Angle 4.5° - 54.2° PC Lens (optional) Zoom Range 6° - 50° Beam Angle 3.7° - 44.5° Field Angle 5.8° - 50.2° Cutoff Angle 6.7° - 52.1° Fresnel Lens (optional) Zoom Range 9° - 55° Beam Angle 4.5° - 46.8° Field Angle 8.9° - 54° Cutoff Angle 13.4° - 60.4° EFFECTS Motorized Zoom 4 Full Blackout Framing Blades, +/-45° Index +/-120° Framing Index Full 360° Bi-Directional Animation Wheel 4-Facet Round and Linear Rotating Prisms 2 Variable Frost Filters (Light and Wash) Motorized Iris with Variable Pulse Effects Variable 16-bit Dimming Curve Modes High Speed Electronic Shutter and Strobe DMX Controllable LED Refresh Rate Pan Angle: 540° Tilt Angle: 260° EFFECTS Motorized Zoom 4 Full Blackout Framing Blades, +/-45° Index +/-120° Framing Index Full 360° Bi-Directional Animation Wheel 4-Facet Round and Linear Rotating Prisms 2 Variable Frost Filters (Light and Wash) Motorized Iris with Variable Pulse Effects Variable 16-bit Dimming Curve Modes High Speed Electronic Shutter and Strobe DMX Controllable LED Refresh Rate Pan Angle: 540° Tilt Angle: 260° COLOR CMY Color Mixing Linear CTO Color Correction 6 Dichroic Colors including UV Filter GOBOS 2x 7 Rotating / Indexing Interchangeable Glass Gobos Optional 7 fixed gobo disc (replaces Animation Wheel) CONTROL / CONNECTIONS 4 DMX Channel Modes 16-bit Pan, Tilt and Dimming Control 5 Fan modes for ultra quiet operation DMX, RDM, Art-NET, sACN Protocol Support (4) Button Touch Control Panel Full Color 180° Reversible LCD Menu Display NFC on bottom and front of fixture base Hibernation Mode (Power Save) IP65 Locking 5pin XLR In/Out IP65 Locking RJ45 Ethernet In/Out IP65 Locking Power In SIZE / WEIGHT Length: 17.5 in (444mm) Width: 12.4 in (315mm) Height: 26.6 in (680 mm) Weight: 70.5 lbs. (32 kg) MOUNTING 2x 180mm Omega Bracket 2x M12 Screw Hole Fixture can be mounted in any orientation ELECTRICAL AC 100-240V 50/60Hz Max Power Consumption W -4°F to 113°F (-20°C to 45°C) INCLUDED ITEMS Omega Brackets (x2) IP65 Rated Locking Power Cable Stainless Steel Safety Wire Foam Inlay APPROVALS / RATINGS
