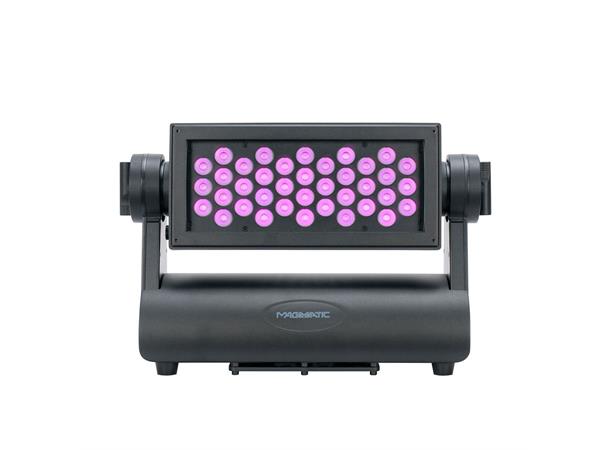

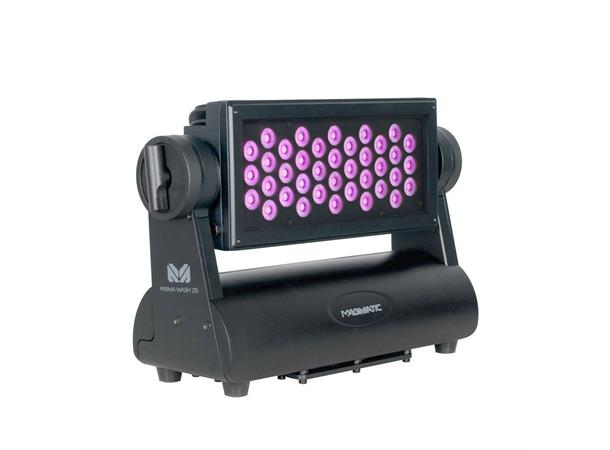

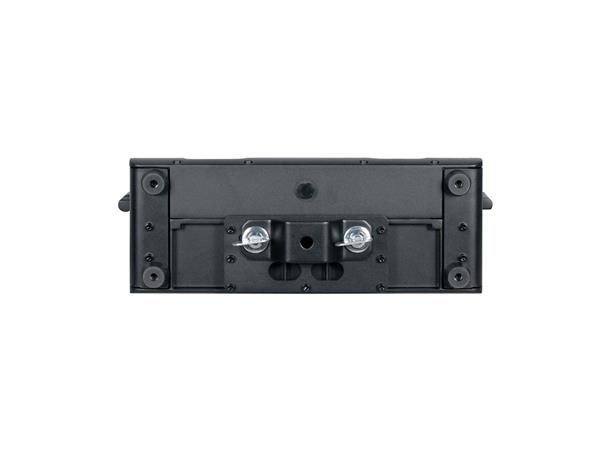

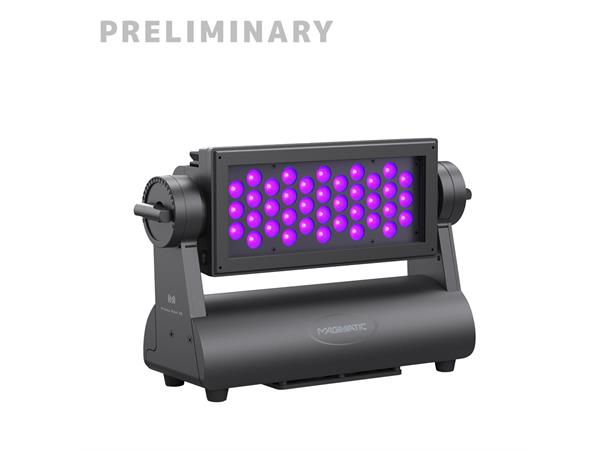

PRISMA WASH 25™ is an exterior IP65 rated UV wash luminaire that produces 365nm peak true UV output with zero visible light. Features include an impressive 25 degree narrow beam angle, manual adjustable tilt positioning and versatile rigging options, a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control.
SOURCE
(38) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
25 Degree Narrow Beam Angle
365nm True UV Peak Wavelength
EFFECTS
High Speed Electronic Strobe
Variable Dimming Curve Modes
CONSTRUCTION
Rugged IP65 Rated Aluminum Housing

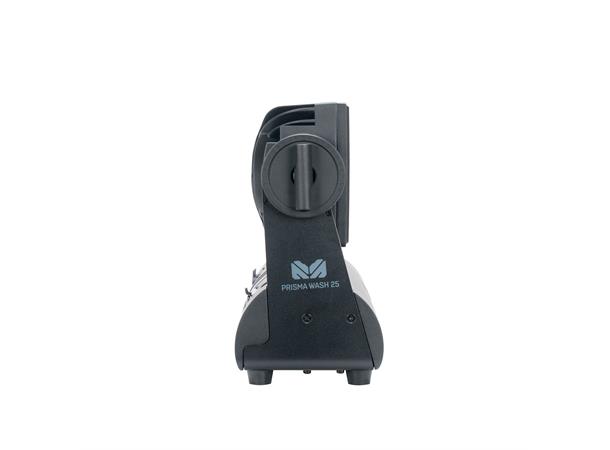

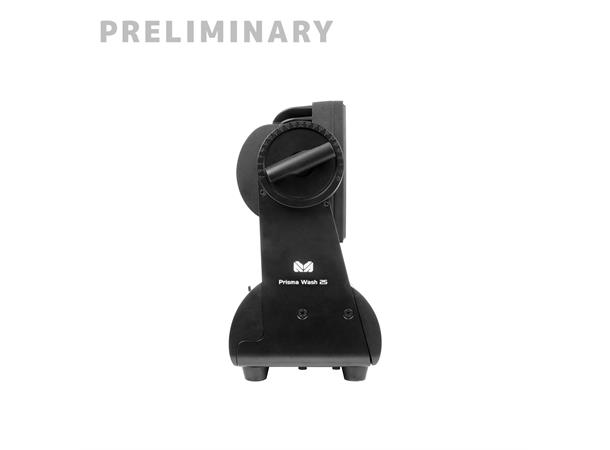

Manual Adjustable Tilt Position
CONTROL
Multiple DMX Channel Modes

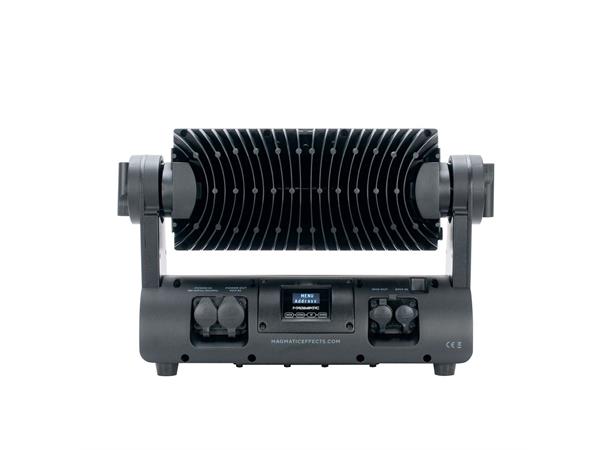

Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support

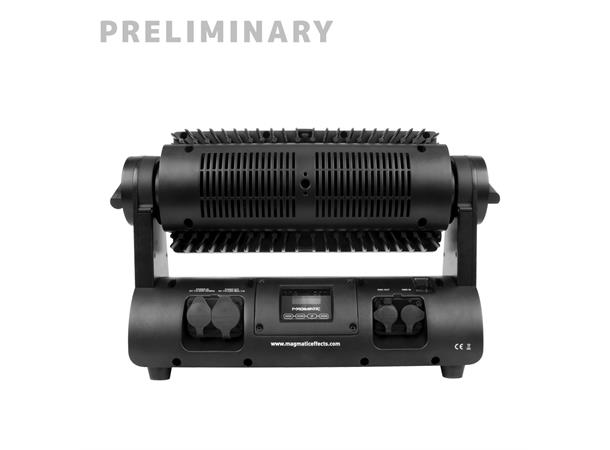

CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 17.5” (445mm)
Width: 5.9” (150mm)
Vertical Height: 11.29” (287mm)
Weight: 19 lbs. (8.62 kg)
ELECTRICAL
AC100-240V 50-60Hz
T2A/250V
83W Max Power Consumption
THERMAL
14°F to 113°F (-10°C to 45°C)
Air Cooled
APPROVALS / RATINGS
CE | cETLus (pending) | IP65

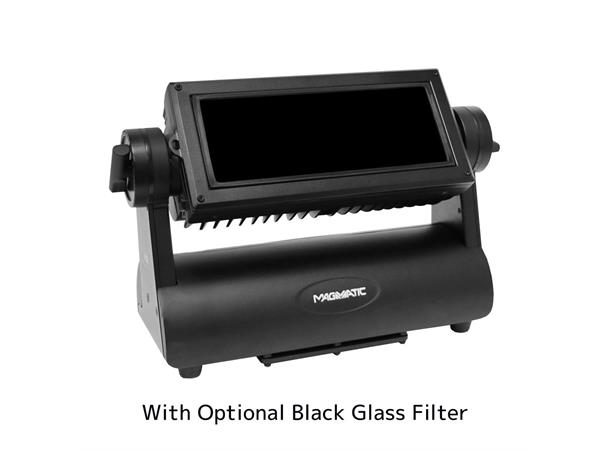

Optional accessories include a Black Glass diffusion filter to create a complete blackout effect, only allowing UV rays to penetrate, and extended length IP rated power and data linking cables.
