PRISMA DRIVER 8™ is an easy to use 48VDC driver system which provides individual DMX-512 control including variable delayed time dimming modes for up to (8) PRISMA MINI UV LED series fixtures including the PRISMA MINI PAR 20™, PRISMA MINI PAR 45™, and the PRISMA MINI BAR 20™
CONSTRUCTION
Rugged Aluminum Housing

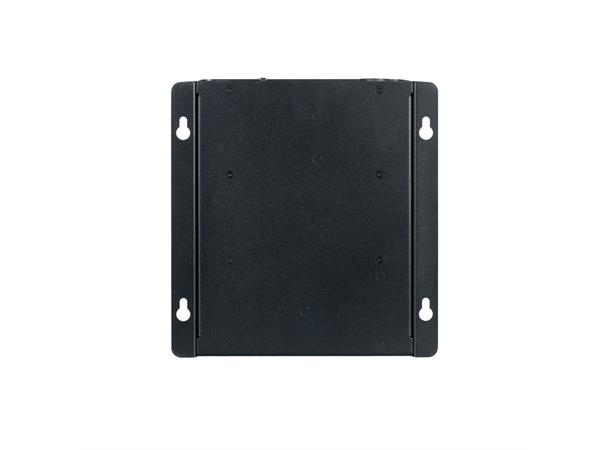

Easy Keyhole Slots for Wall/Surface Mounting
CONTROL
Multiple DMX Channel Modes

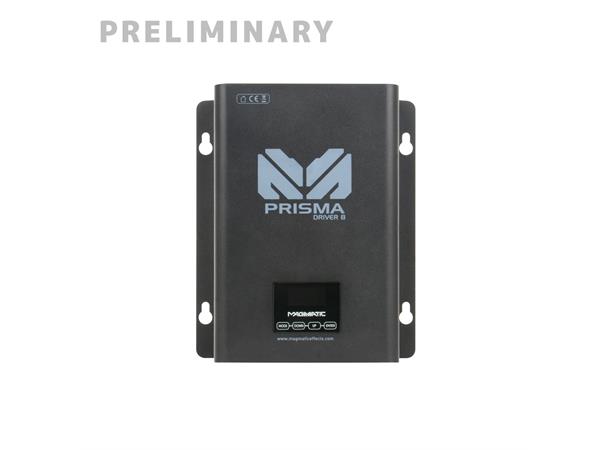

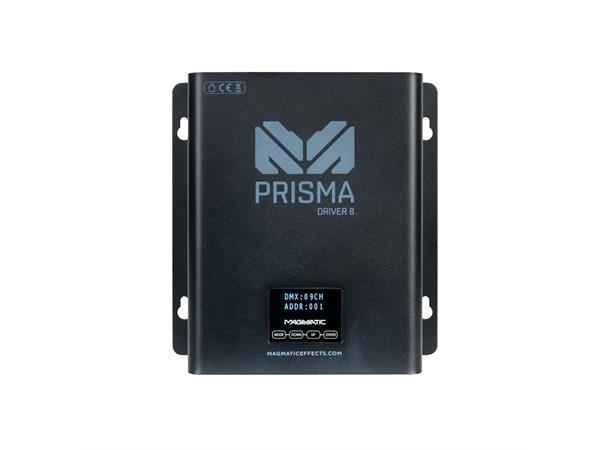

Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support

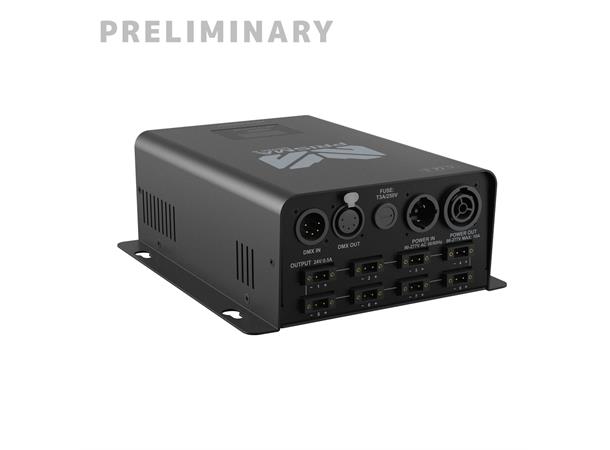

CONNECTIONS

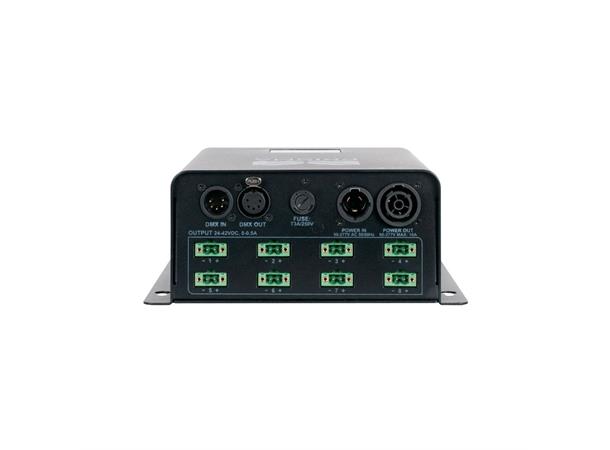

8x 2pin Bare Wire Block Terminals (8 PRISMA MINI fixtures max)
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 8.9 in. (225mm)
Width: 8.4 in. (212mm)
Vertical Height: 3.5 in. (88mm)
Weight: 5.7 lbs. (2.6 kg)
ELECTRICAL
AC100-240V 50-60Hz
48VDC 8.3A
167W Max Power Consumption
THERMAL
Ambient Temperature (Ta max) 104°F (40°C)
APPROVALS / RATINGS
CE | cETLus | IP20
Features include a rugged aluminum housing, easy keyhole slots for wall and surface mounting, multiple DMX control modes, an onboard 4 button touch control panel, 8x 2pin bare wire terminal blocks, DMX 5pin locking XLR in/out, and locking power in/out.
