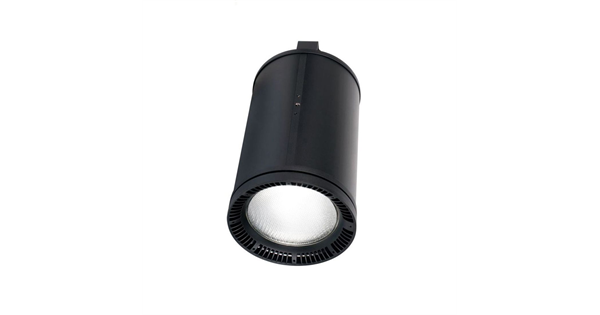

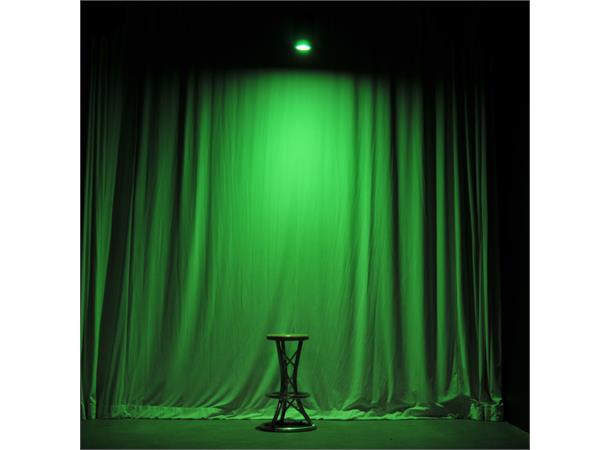

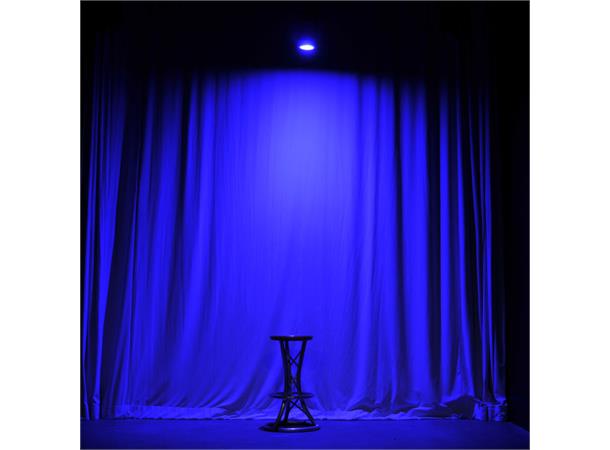

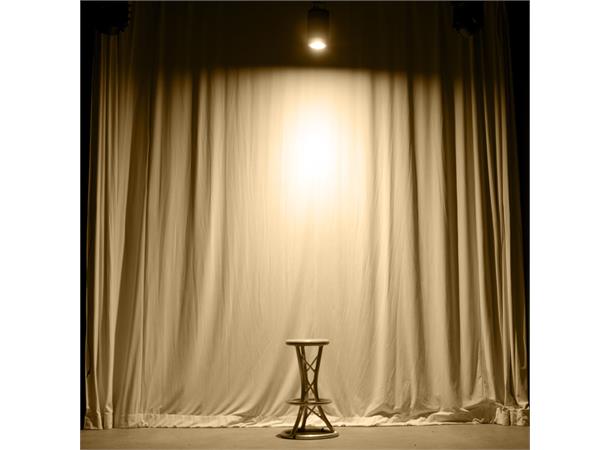

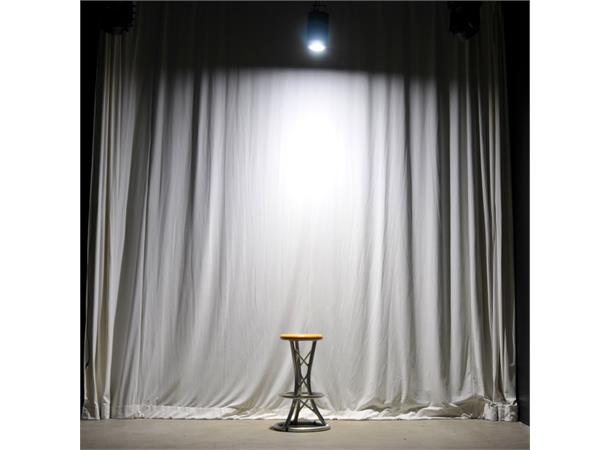

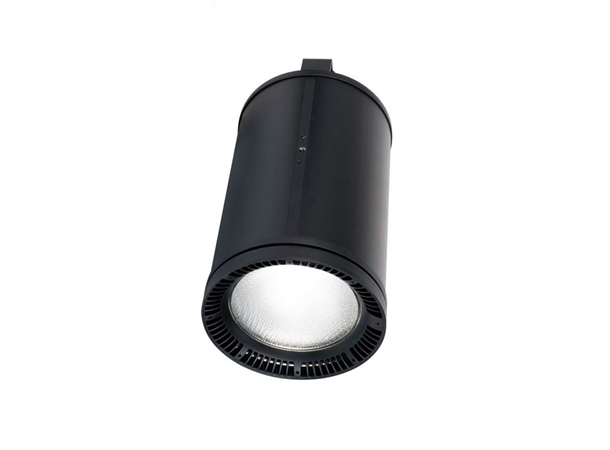

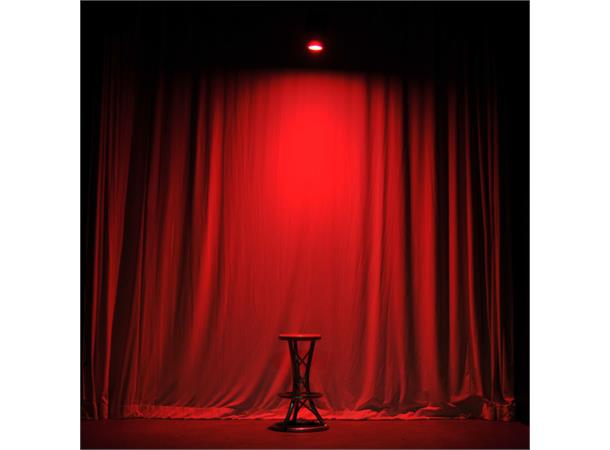

The FUZE PENDANT™ provides powerful illumination for a variety of house and area lighting applications. Crisp whites with a high CRI, plus subtle pastels and powerful pure colors with 16-bit dimming, allow for a wide range of smooth illumination and dynamic effects for any environment.
At up to 11,000 lumens, the FUZE PENDANT is ideal for large areas and high-ceiling applications yet is compact enough to be adaptable to smaller spaces. It is convection cooled for absolute silence and has no fans or other moving parts for a long maintenance free product life. Pendant and optional yoke or recessed ceiling options provide flexibility when finding the ideal mounting position and a variety of lens choices (45° included, 25°, 40° or 50° optional) allow for precise light distribution.
Industry standard power and DMX connections, plus included terminal block connections for power, emergency battery input and 0-10V control, support multiple permanent or temporary install requirements with a single product design.
TECHNICAL DATA
FEATURES
Full Spectrum 230W 5-in-1 LED Array
2,400 - 8,500K Color Temperature
CRI 90 @ 3,200K
11,000 Total Lumen Fixture Output
45° Lens Included
Optional 25, 40, and 50 Degree Lenses Available
Compact Fanless Design
DMX, RDM, 0-10V and E-FLY Wireless Support
48V Emergency Battery Input
Bare Wire Block Terminal Connections (connectors included)

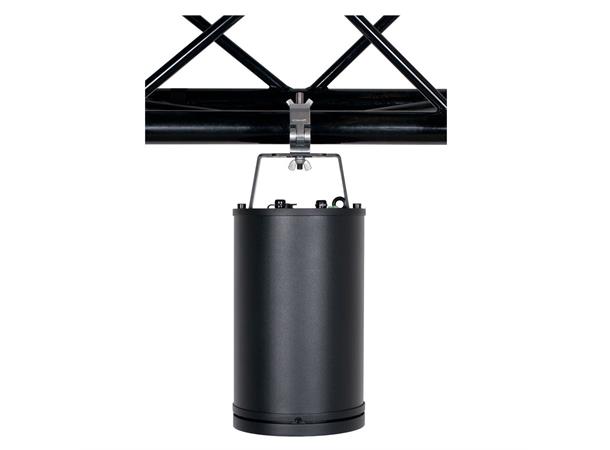

Pendant Bracket (included)

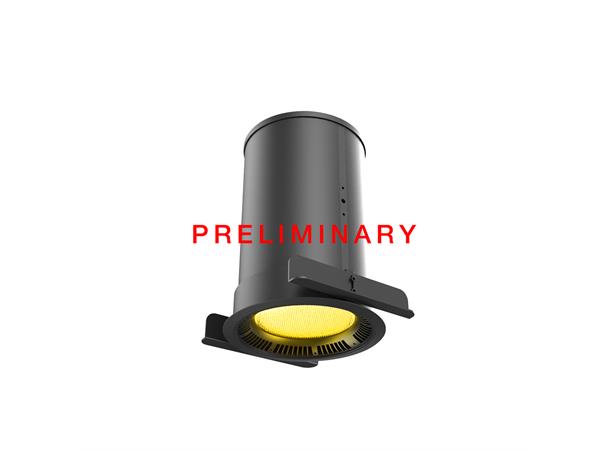

Optional Yoke or Recessed Ceiling Mount Kits Available
Optional Half and Full Snoot Kits Available
SPECIFICATIONS
Source 230W 5-in-1 RGBWL (Red, Green, Blue, White, Lime) LED Array
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
11,000 Total Lumen Fixture Output
CRI 90 @ 3200K
45° Lens Included
EFFECTS
Color Temperature Control 2,400K - 8,500K
Virtual Color Swatch Book
Dimmer, Dimmer Color, RGBWL, RGBWL 16-Bit, Standard, Extended, HSI & HSI Extended Control Options
Variable 16-bit Dimming Curves
High Speed Electronic Shutter and Strobe
DMX and Menu adjustable LED Refresh Rate Frequency
CONTROL / CONNECTIONS
8 DMX Channel Modes
Standalone and Primary/Secondary Modes
RDM (Remote Device Management)
0-10V Dimming (Current-Sink)
E-FLY™ Internal Extended Range Wireless DMX Transceiver

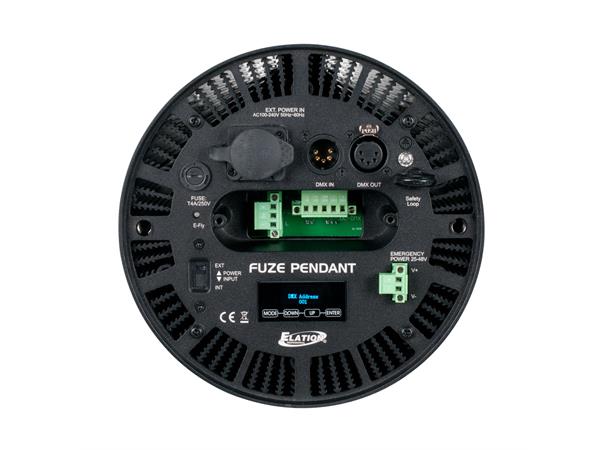

4 Button Control Panel and OLED Menu Display

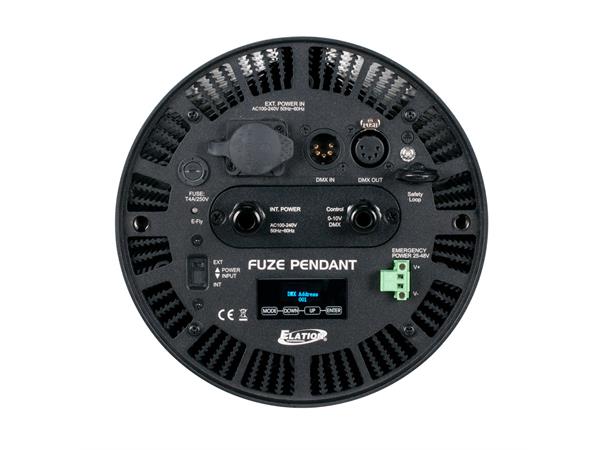

Locking 5pin XLR Connector In/Out
Locking IP65 Power Connector In
3pin Bare Wire Terminal Block for Power
5pin Bare WireTerminal Block for 0-10V, DMX
2pin Bare Wire Terminal Block for 48V Emergency Battery Input
SIZE / WEIGHT
Length: 12.5" (318mm)
Diameter: 7.8" (197mm)
Weight: 15.8lbs. (7.2 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption 230W
14°F to 113°F (-10°C to 45°C)
OPTIONAL ACCESSORIES
1237000229 - 25° Lens
1237000243 - 40° Lens
1237000228 - 50° Lens
1237000244 - Ceiling Mount Kit
1237000245 - Yoke Mount Kit
1237000246 - Half Snoot
1237000247 - Full Snoot
