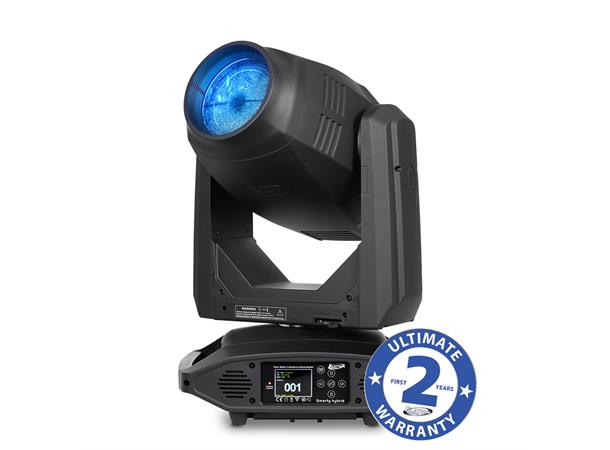

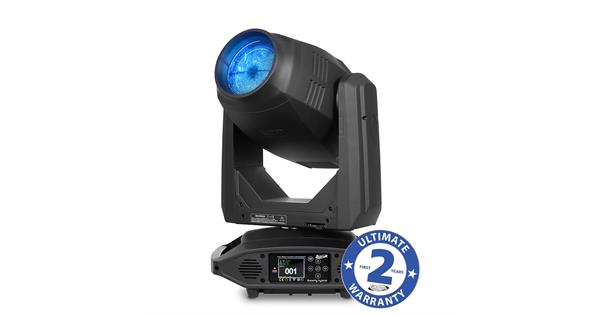

Smarty Hybrid is a full-featured spot/beam/wash fixture and the most compact CMY color-mixing hybrid Elation has released to date. At the heart of the fixture is a new Platinum lamp using “FLEX" technology offering a "smartly” designed discharge lamp/ballast package (up to 6,000 hours lamp life) for high output performance at an efficient and affordable price point. The lamp is dimmable and power to the lamp is reduced when not in use. Elation has introduced an Ultimate Warranty program on Smarty Hybrid that covers the first two years of operation and includes a two-year warranty on the lamp or 6,000 hours of use, whichever comes first.
FEATURES280W 3-in-1 Spot, Beam and Wash Luminaire
Efficient Lamp Technology: up to 6.000 hours
Lamp Power at 190W, 240W or 280W
3° - 27° Spot, 1° - 18° Beam and 5° to 33° Wash Motorized Zoom Range
Full CMY-Flag Color Mixing System
CTO, CTB and QUAD RGBY Filters
16-Facet and Linear, Rotating and Indexing Prisms
Prism Morphing
Wash Frost Filter
Pan/Tilt Lock
Instant Hibernation Mode (Power Save) to 190W Lamp Power
Long-Term Hibernation Mode (Power Save) to 90W Lamp Power
Internal E-FLY™ Wireless DMX Receiver
SOURCE
Philips™ MSD Platinum Flex 200 190-280W Lamp
11,000 Total Output Lumens, 8,000K, 80CRI
Up to 6,000 Hour Average Lamp Life*
PHOTOMETRIC DATA
135,108 LUX 12,552 FC @ 16.4’ (5m) (Spot)
128,426 LUX 11,931 FC @ 49.2’ (15m) (Beam)
EFFECTS
16-Facet and Linear, Rotating and Indexing Prisms
Prism Morphing
Wash Frost Filter
High Speed Mechanical Shutter and Strobe
COLOR
Full CMY-Flag Color Mixing System
CTO, CTB and QUAD RGBY Filters
13 Dichroic Colors + White (Open)
GOBOS
2 Gobo Wheels
8 Interchangeable / Rotating / Indexing Glass & Metal Gobos
Size: OD 14.0mm / ID 7.0mm**
12 Static-Stamped / Indexing Metal Gobos
CONTROL / CONNECTIONS
2 DMX Channel Modes (20 / 34)
DMX, Art-NET and sACN Support
RDM (Remote Device Management)
8 / 16 Bit Pan, Tilt and Dimming Control
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
USB Firmware Service Port
Internal E-FLY™ Wireless DMX Receiver
Locking 5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out (Art-NET & sACN)
Locking IP65 Power Connector In/Out
SIZE / WEIGHT
Length: 15.2” (385mm)
Width: 11.2” (284mm)
Vertical Height: 24” (610mm)
Weight: 49 lbs. (22.2 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
480W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
Foam Inlay
2 Omega Brackets
Locking IP65 Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1227000013 WP-02 Outdoor Dome
1227000018 WP-06 Outdoor Dome
1322000054 E Loader III
1322000055 E-FLY Wireless DMX Transceiver
1521000351 Touring Case for 2x Smarty Hybrid FI
1521000352 PRO Case for 2x Smarty Hybrid FI
SPECIAL WARRANTY
First 2 Years or 6.000 Hours Ultimate Lamp Warranty
*Lamp Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
**OD = Outside Diameter | ID = Image Diameter Due to varying manufacturing processes, it is highly recommended to provide a gobo and holder sample from the fixture to 3rd party custom gobo vendors for accurate sizing."
