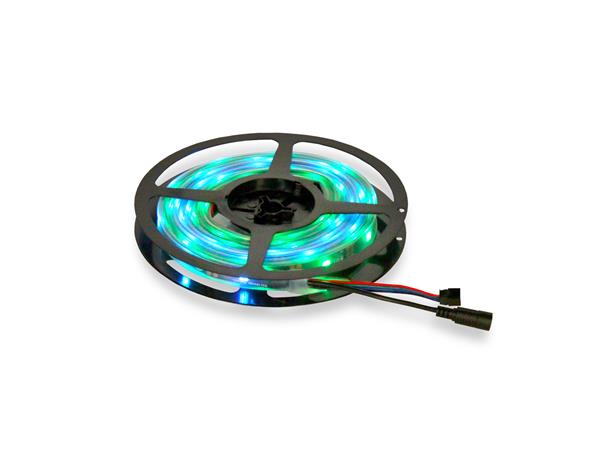

The FLEX PIXEL P40WP™ is an outdoor rated 10 foot (3m) flexible LED pixel tape featuring (72) RGB SMD tri-color LED pixels (216 total DMX channels) spaced on 1.6” (40mm) centers, producing over 1 billion color possibilities with a 120° viewing angle, enclosed in an IP65 rated waterproof flexible cover which can be cut and extended every 4” (102mm), and mountable to most surfaces using Elation’s FLEX CHANNEL™ line of aluminum mounting tracks.

Each FLEX PIXEL P40WP tape is powered by an optional FLEX PIXEL 5VPSU™ 5V universal auto switching power supply (110-240v), and can be controlled using one of Elation’s optional LED tape drivers including FLEX PIXEL DRIVER™, FLEX PIXEL IRC™, or EZ KLING™, and is also compatible with Kling Force LED, DiGidot C4, and MediaMaster.

TECHNICAL DATA

FEATURES

IP65 Outdoor Rated Flexible LED Pixel Tape

10 foot (3m) Roll

(72) RGB Tri-Color SMD LED Pixels

(216) Total DMX Channels

Pixels Spaced on 1.6” (40mm) Centers

Cut and Extend Every 4” (102mm)

120° Viewing Angle

Over 1 Billion Color Possibilities

PLEASE NOTE

FLEX PIXEL P40WP

LED tape is the replacement for FLEX PIXEL WP LED tape which is discontinued. Although FLEX PIXEL P40WP functions exactly the same, please note the color output is not guaranteed to exactly match the output of FLEX PIXEL WP. This should be taken into consideration when adding new tape to an existing installation.

SOURCE

(72) RGB SMD LED Pixels

50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

COLOR

Over 1 Billion Color Possibilities

CONTROL

(216) DMX Channels

ICS APA102 Protocol

With Wired Digital Communication Network

SIZE / WEIGHT

Length: 10.0' (3m)

Roll Width: 0.57” (14.5mm)

Vertical Height: 0.18” (4.5mm)

Weight: 0.66 lbs (0.3 kg)

ELECTRICAL / THERMAL

DC 5V

15W Max Power Consumption
