Pixel Driver 1000IP™ is designed specifically for the Elation Pixel Bar 30IP, 60IP, and 120IP series, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control of 1,020 max pixels via Kling-Net, and 170 max pixels via Art-Net and sACN (streaming ACN) protocols.

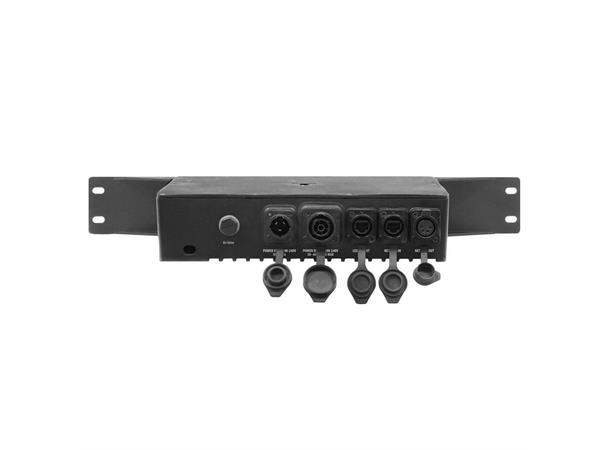

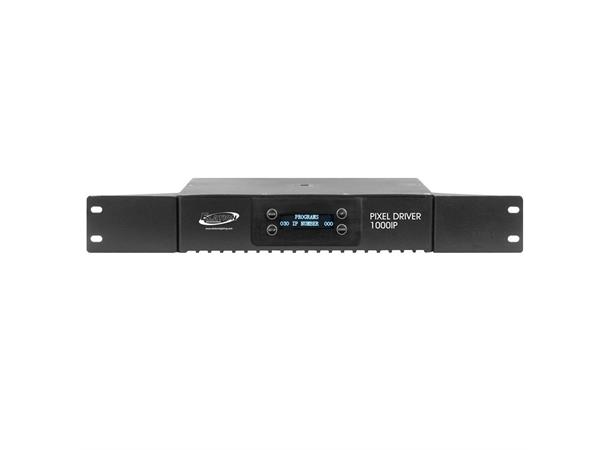

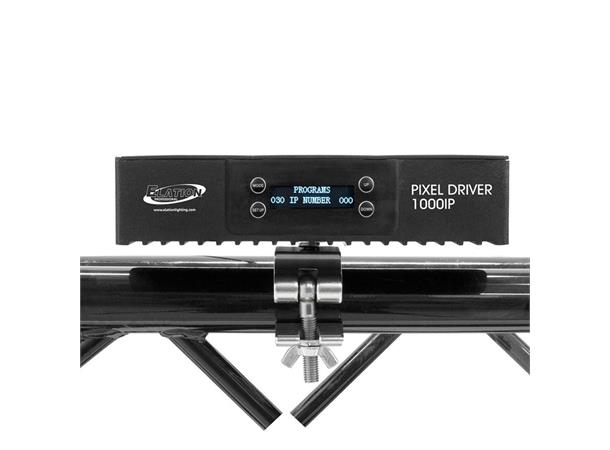

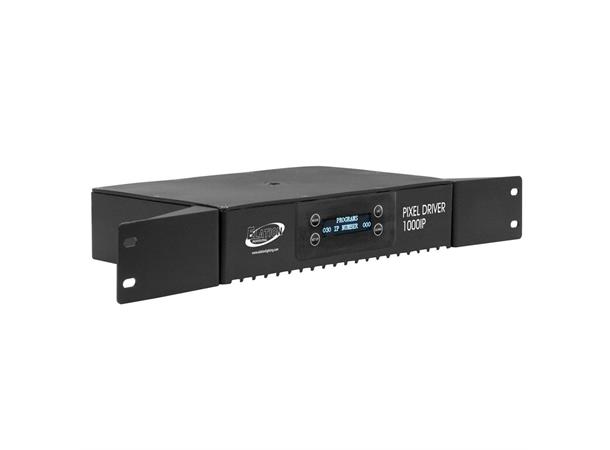

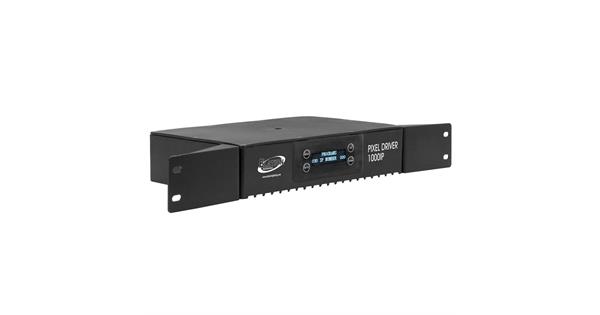

The Pixel Driver 1000IP features a rugged IP65 housing, universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (4) outputs which use proprietary IP65 rated 4pin combo cables (sold separately) that supply power and data to each pixel bar, (available in lengths from 0.6 to 15 meters). The Pixel Driver 1000IP can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).

TECHNICAL DATA

FEATURES
Power/Data Supply for Elation Pixel Bar 30IP, 60IP, and 120IP
IP65 Rated
Simple On-Board Manual Dimming and Strobe Control
Kling-Net, Art-Net, and sACN Protocol Support
1,020 Max Pixel Mapping via Kling-Net
170 Max Pixel Mapping via Art-Net and sACN
19-inch Rack or Truss Mounting Options
Multi Unit Linking via RJ45 Ethernet (1) Output
Power/Data Combo Cables (sold separately)*
*Available in lengths from 0.6-15 meters

SPECIFICATIONS

CONTROL / CONNECTIONS
Manual RGB Mode
Internal Programs
Art-NET | sACN | Kling-NET
2 RJ45 Ethernet Ports
1 4pin Power/Data Outputs

SIZE / WEIGHT
Length: 19” (483mm) * With Rack Ears
Width: 7.88” (200mm)
Height: 2.72” (69mm)
Weight: 8 lbs. (3.6kg)

ELECTRICAL
AC Input 100-240V - 50/60HZ, 2.2A
DC Output 24V, 8.4A
IP65 rated locking power IN/Out
200W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)
