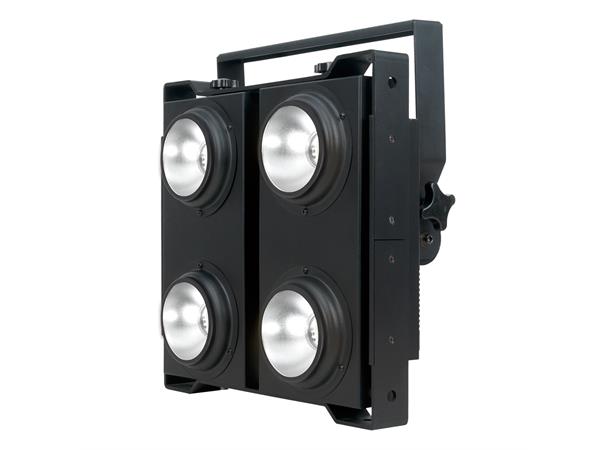

The Cuepix Blinder WW4 and WW2 are ideal for adding high-impact white light to productions of all types. These two industry standard blinders have been staples on shows and events around the world for years. They house 2 and 4 long-life 100W warm white 3,200K COB LEDs respectively for a bright, high-density output and superior all-around performance. Both models feature individual pixel control as well as preprogrammed effects macros.
"
FEATURES
High Power Warm White LED Blinder Luminaire
100W Warm White LEDs
Pixel Controlled LEDs
62° Beam Angle
Manual Pan Focus
Optional Linking of 2 Cuepix Blinder WW4
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film
SOURCE
4x 100W Warm White 3,200K COB LEDs
100,000 Hour Average LED Life*
PHOTOMETRIC DATA
1,581 LUX 147 FC @ 9.8‘ (3m)
EFFECTS
Manual Pan Focus
Pixel Controlled LEDs
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
COLOR
3,200K Warm White
CONTROL / CONNECTIONS
6 DMX Channel Modes (1 - 9)
DMX, Art-NET and Kling-NET Support
RDM (Remote Device Management)
8 / 16 Bit Dimming Control
4 Button Control Panel
LCD Menu Display

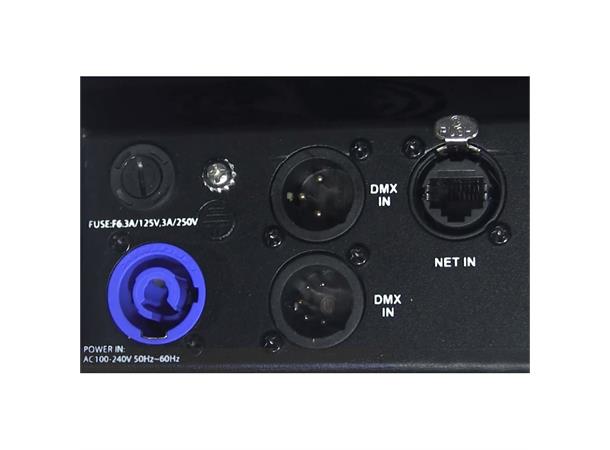

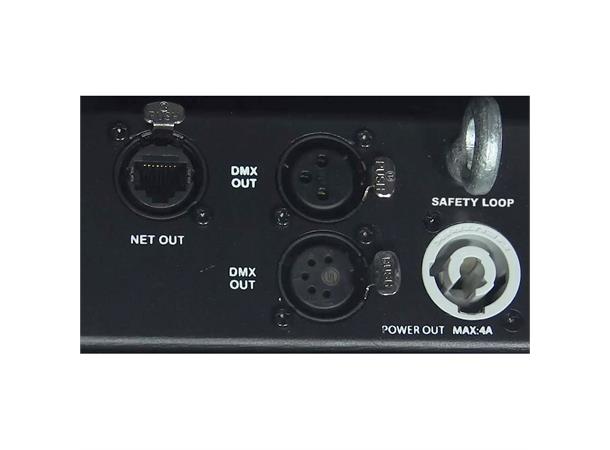

Locking 3/5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out (Art-NET)
Locking Power Connector In/Out
SIZE / WEIGHT
Length: 15.7"" (400mm)
Width: 6.9"" (174mm)
Vertical Height: 17.4"" (441mm)
Weight: 21.0 lbs. (9.5 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
427W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
Locking Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1236300072 Connector Panel Cuepix Blinder WW4
1322000060 C-Loader II
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
"
