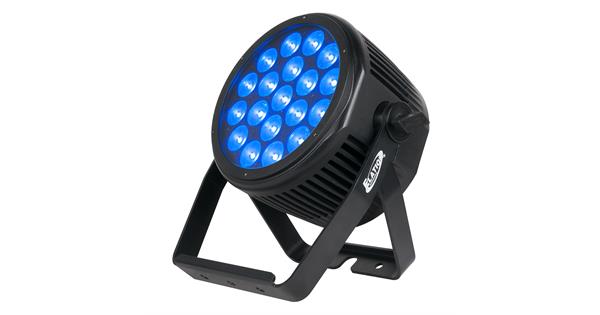

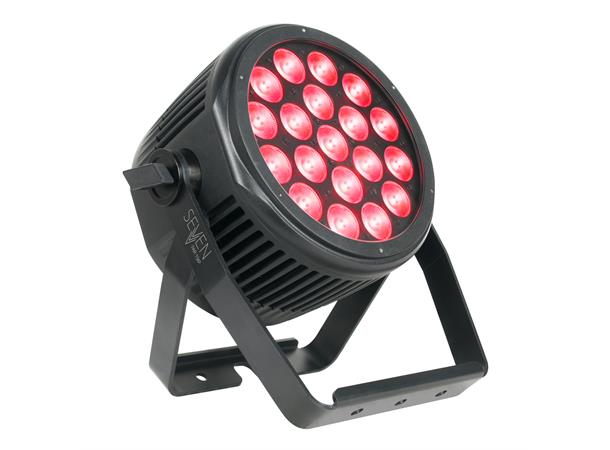

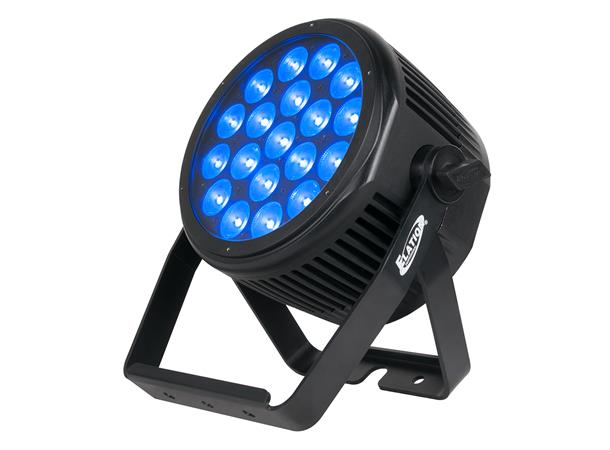

With Seven Par IP™ color changers, lighting designers have access to an even wider spectrum of color options to paint stages, sets, scrims and scenery in high-impact colored or high-quality white light. Available with 7 or 19 LEDs, the Seven Par IP fixtures use the latest 7-color multi-chip LED technology and spread light at a 17-degree angle. Useful for production applications or installations as a wash light, uplight, wall wash, truss warmer and more, Seven Par IP fixtures are wrapped in a IP65-rated dust and waterproof housing for use indoors or out.
"
FEATURES
IP65 Dust and Water Protection
Seven-Color LED Par Wash Luminaire
25W RGBWA+Lime+UV LEDs
Individual Hue, Saturation and Intensity Control
RGB+Seven Color 3 Channel DMX Mode
17° Beam and 33° Field Angle
Optional Barn Doors Available
Included Gel Frame and Gel Frame Holder
Silent Operation
Adjustable Refresh Frequency and Gamma
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film
SOURCE
(19) 25W 7-IN-1 RGBAW + Lime + UV (395nm) LEDs
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
9,300 Total Lumen Output | 90CRI
10,551 LUX 981 FC @6.6’ (2m) (Full ON)
EFFECTS
Individual Hue, Saturation, and Intensity Control
RGB + Seven Color 3 Channel DMX Mode
12 Internal Program Macros with Speed and Fade Control
64 Unique 7-Color Macros
Selectable Dimming Curve Effects
COLOR
RGBAW + Lime + UV (395nm)
CONTROL / CONNECTIONS
(7) DMX Channel Modes (15 total channels)
DMX and Manual Control
4 Button Control Panel
180° Reversible OLED Menu Display
Adjustable Refresh Rate (900-28,800 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
RDM (Remote Device Management) Protocol Support

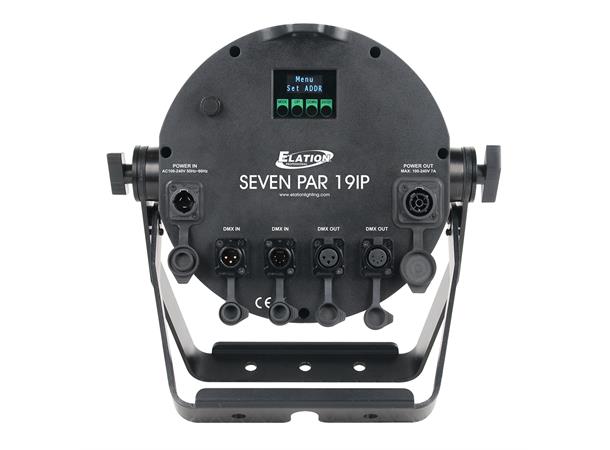

IP Rated 5pin DMX and Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 14.0” (357mm)
Width: 14.6” (371mm)
Vertical Height: 11.2” (284mm)
Weight: 25.0 lbs. (11.3kg)
GEL FRAME
Length: 12"" (305mm)
Vertical Height: 12"" (305mm)
Inner Diameter: 9"" (229mm)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
500W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
"
