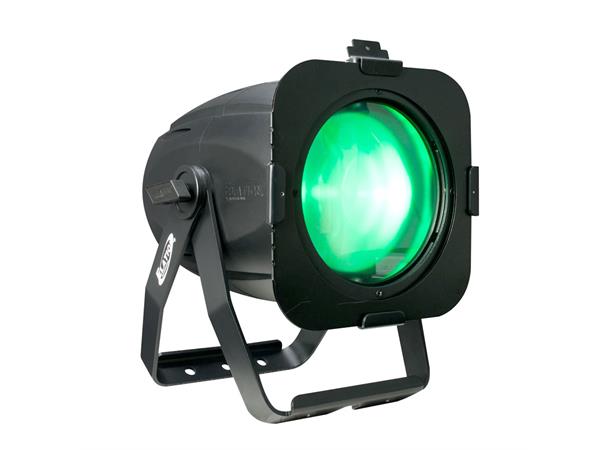

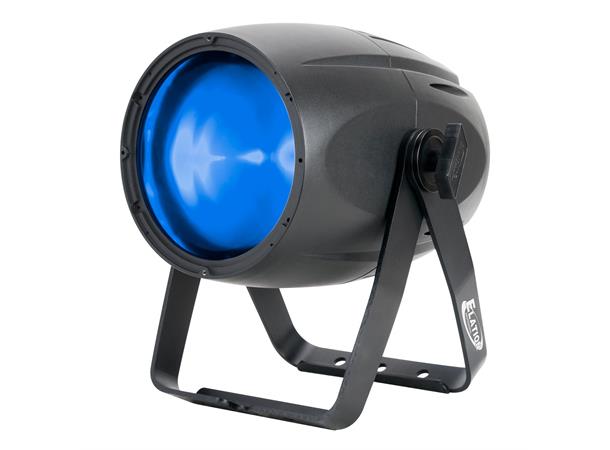

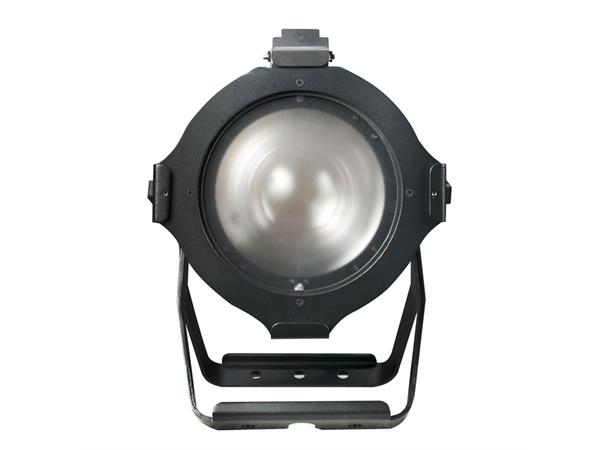

The Fuze Par Z175™ is a full-color LED PAR light with single-lens 175W RGBW COB LED engine that projects the high quality, flat field of light lighting designers demand. Designed for use in all types of stage wash applications from theater, TV studio and House of Worship environments to touring and special events, it emulates the classic lens look of a traditional Fresnel with a lens face that appears as one color instead of individual LED diodes.
"
FEATURES
Single Source LED Par luminaire
175W RGBW COB LED
8° - 35° Motorized Zoom
Dual Yoke / Floor Stand
Included Gel Frame and Barn Door
Silent Operation
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film
SOURCE
175W RGBW COB LED
4,382 Total Output Lumens
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
10,530 LUX 978 FC @ 9.8’ (3m) (Min. Zoom)
829 LUX 77 FC @ 9.8’ (3m) (Max. Zoom)
EFFECTS
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
COLOR
RGBW COB LED
Variable Color Temperature (2,700K - 8,000K)
CONTROL / CONNECTIONS
12 DMX Channel Modes (4 - 14)
DMX Support
RDM (Remote Device Management)
8 / 16 Bit Dimming Control

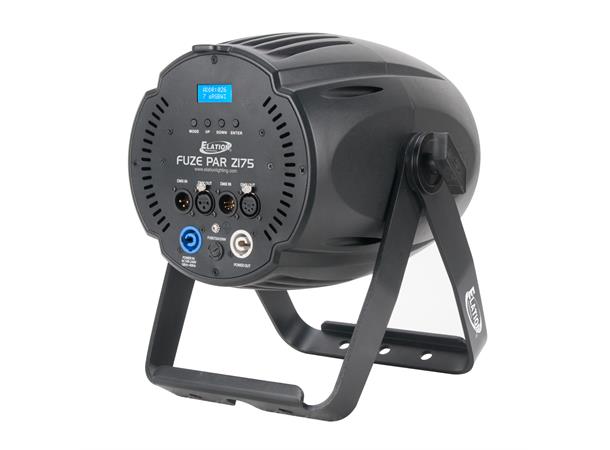

4 Button Control Panel
LCD Menu Display
Locking 3/5pin XLR Connector In/Out
Locking Power Connector In/Out
SIZE / WEIGHT
Length: 13.1” (333mm)
Width: 13.4” (340mm)
Vertical Height: 15.1” (383mm)
Weight: 20.0 lbs. (9.0 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
200W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
Removable Gel Frame Holder

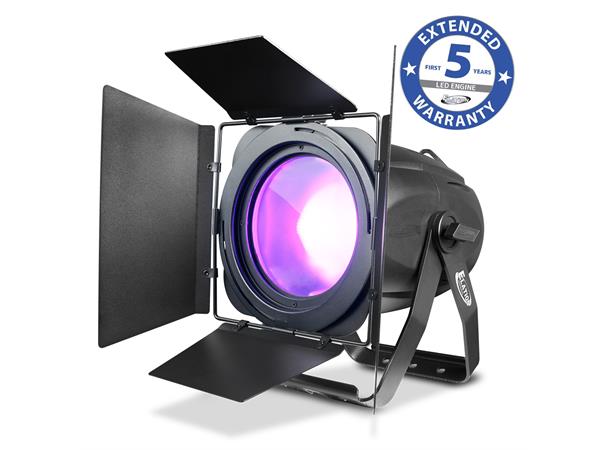

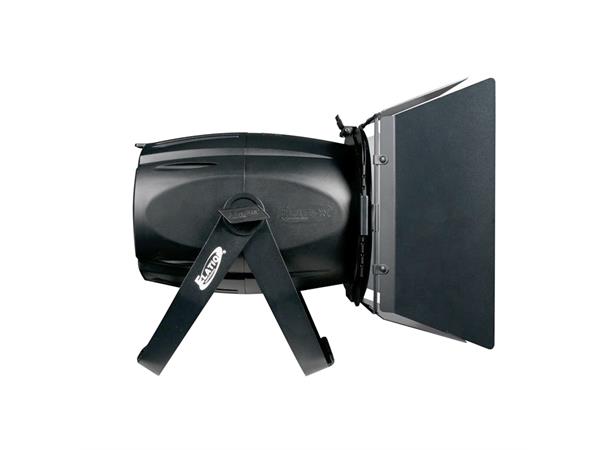

Removable Barn Doors
Locking Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1322000060 C-Loader II
SPECIAL WARRANTY
Extended 5 Years LED Engine
Extended 3 Years Fixture Components on Registered Indoor Fixed Installation Projects
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
"
