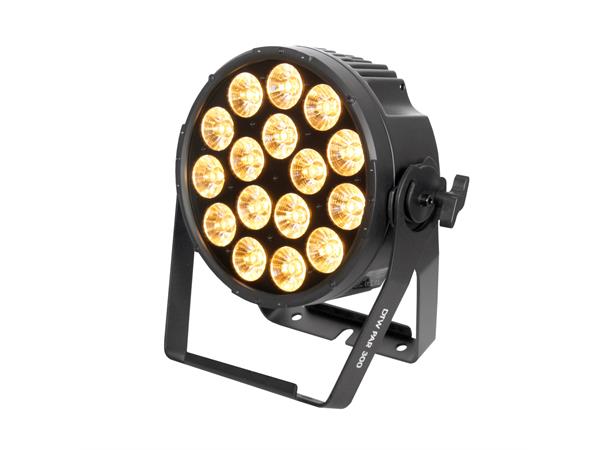

An excellent choice when a variable white PAR light is required in broadcast, theatrical, stage and conventional lighting situations, the DTW PAR 300™ is color temperature adjustable and can emulate the “Dim to Warm” look of conventional tungsten fixtures. It houses sixteen 10W multi-chip CW / WW / Amber LEDs for a soft light that is easily adjustable from warm-white tungsten to cool white. Color temperature range control is from 2,700K to 6,500K with independent Dim-to-Warm channel control from 1,800K to 3,200K.
"
FEATURES
Dynamic White LED Par Luminaire
16x 10W Cool White, Warm White and Amber LEDs
Dim to Warm Technology
23° Beam Angle

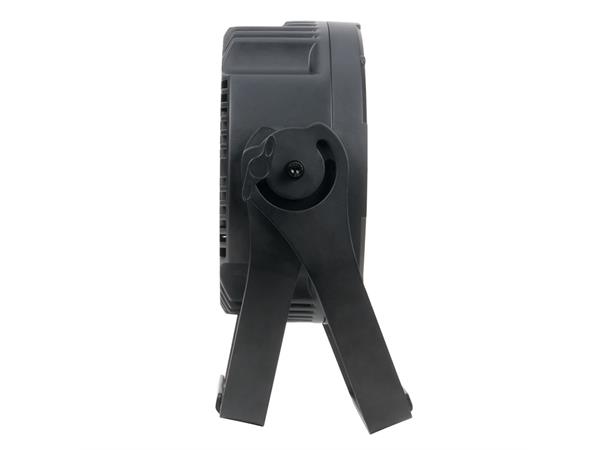

Dual Yoke / Floor Stand
No Fans, Silent Operation
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film
SOURCE
16x 10W Cool White, Warm White and Amber Multi-Chip LEDs
3,632 Total Output Lumens
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
2,635 LUX 245 FC @ 9.8’ (3m)
EFFECTS
Dim to Warm Technology (3,200K @ 100% - 1,800K @ 1%)
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
COLOR
Cool White + Warm White + Amber Multi-Chip LEDs
Variable Color Temperature (1,800K – 6,500K)
CONTROL / CONNECTIONS
7 DMX Channel Modes (1 - 8)
DMX Support
RDM (Remote Device Management)
8 / 16 Bit Dimming Control

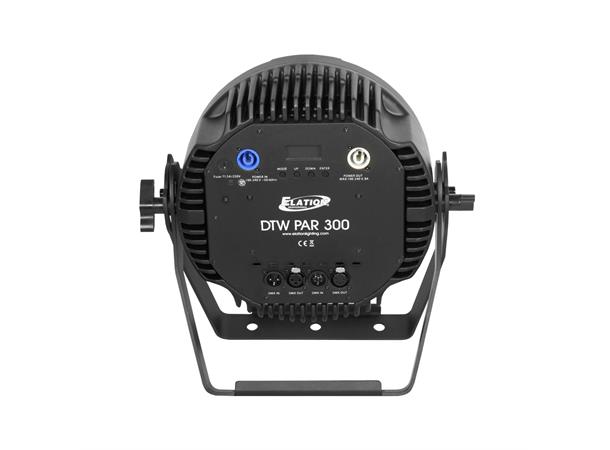

4 Button Control Panel
LCD Menu Display
Locking 3/5pin XLR Connector In/Out
Locking Power Connector In/Out
SIZE / WEIGHT
Length: 14.4” (365mm)
Width: 5.1” (129mm)
Vertical Height: 14.7” (373mm)
Weight: 19.0 lbs. (8.6 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
170W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
Locking Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1621000057 Gel Frame Holder

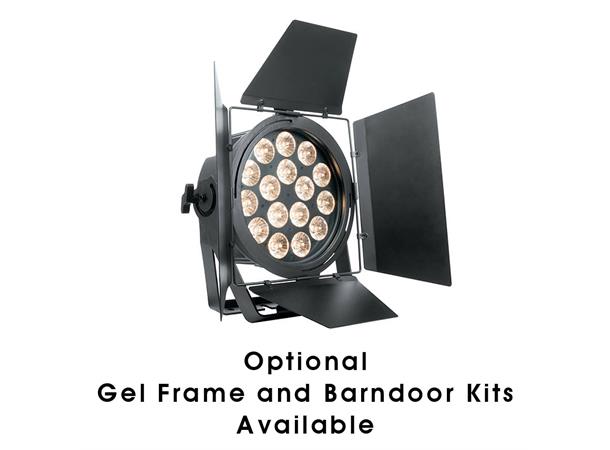

1621000060 Barn Doors
1226100230 LSF 10°
1226100228 LSF 20°
1226100227 LSF 30°
1226100229 LSF 60x1°
1322000060 C-Loader II
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
"
