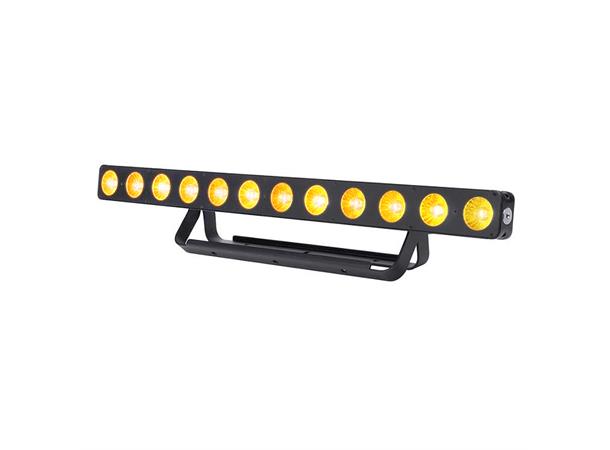

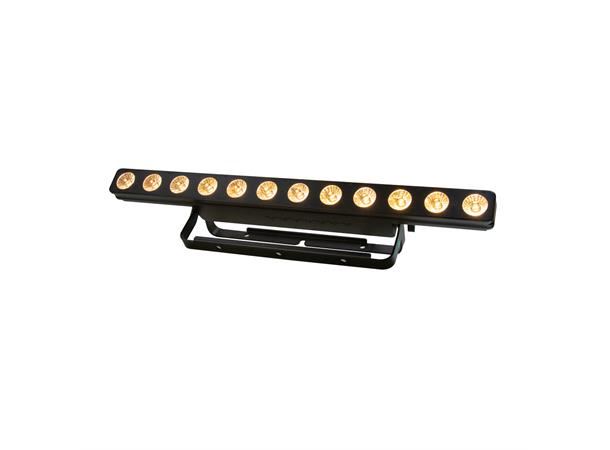

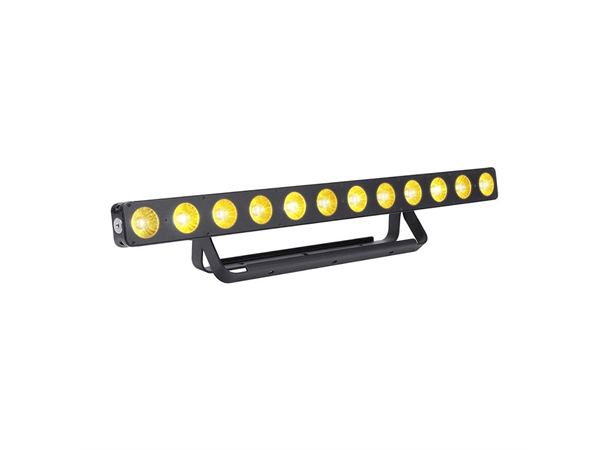

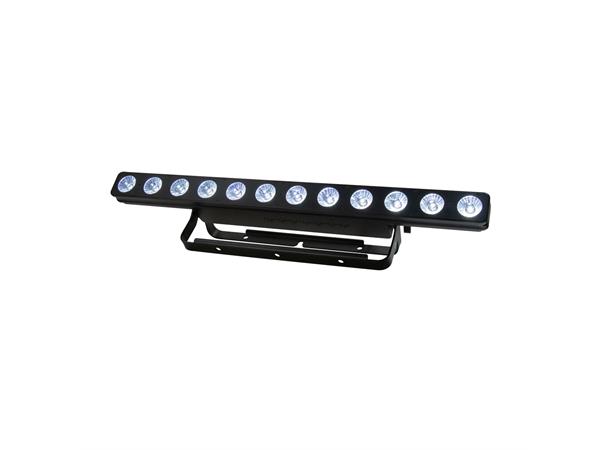

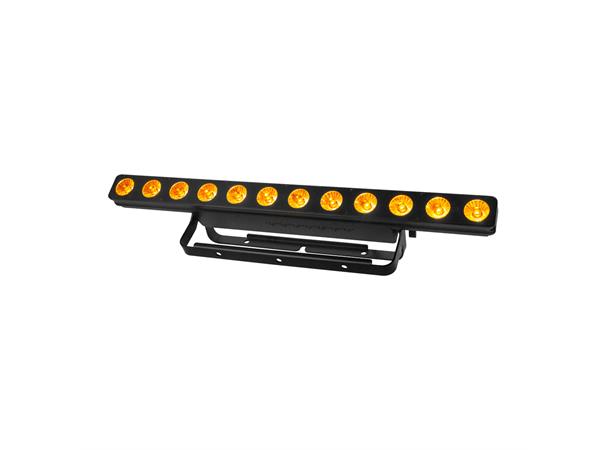

The DTW Bar 1000™ is a white light LED batten and an excellent choice when variable white light is required in broadcast, theatrical, stage and conventional lighting situations. Color temperature adjustable, it can emulate the “Dim to Warm” look of conventional tungsten / halogen fixtures. The DTW Bar 1000 houses twelve 10W cool white, warm white and amber LEDs for a soft output that is easily adjustable from warm to cool white. Full color-temperature range control is from 1,600K - 6,500K plus independent Dim-to-Warm channel control from 1,600K –to 3,200K for accurate rendition of traditional tungsten halogen lamps.
"
FEATURES
Dynamic White LED Batten Luminaire
12x 10W Cool White, Warm White and Amber LEDs
Dim to Warm Technology
Adjustable Color Temperature at 100% and 1% for Dim-To-Warm Use
Pixel Controlled LEDs
20° Beam Angle
Built-in Magnets for Seamless Unit Linking
Dual Yoke / Floor Stand
No Fans, Silent Operation
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film
SOURCE
12x 10W Cool White, Warm White and Amber Multi-Chip LEDs
2,900 Total Output Lumens
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
1,986 LUX 185 FC @ 9.8’ (3m)
EFFECTS
Dim to Warm technology (3,200K @ 100% - 1,600K @ 1%)
Adjustable Color Temperature at 100% and 1% for Dim-To-Warm Use
Pixel Controlled LEDs
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
COLOR
Cool White, Warm White and Amber Multi-Chip LEDs
Variable Color Temperature (1,600K – 6,500K)

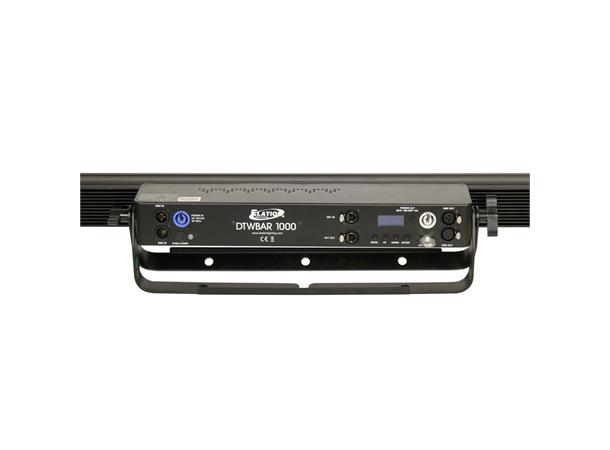

CONTROL / CONNECTIONS
14 DMX Channel Modes (1 - 72)
DMX Support
RDM (Remote Device Management)
8 / 16 Bit Dimming Control
4 Button Control Panel
LCD Menu Display
Locking 3/5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out (Art-NET and Kling-NET)
Locking Power Connector In/Out
SIZE / WEIGHT
Length: 35.4” (900mm)
Width: 8.1” (206mm)
Vertical Height: 6.1” (155mm)
Weight: 14.0 lbs. (6.4 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
120W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS

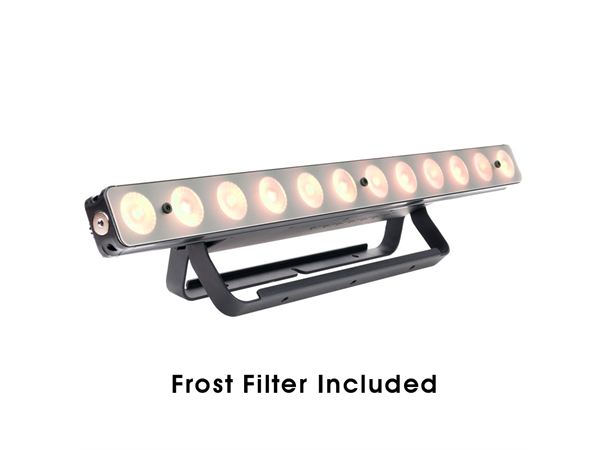

Frost Filter
Glare Shield
Mounting Screws for Frost Filter and Glare Shield
Locking Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1322000060 C-Loader II
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
"
