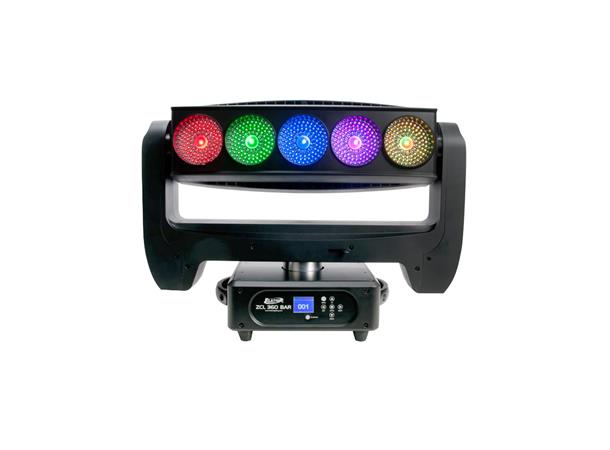

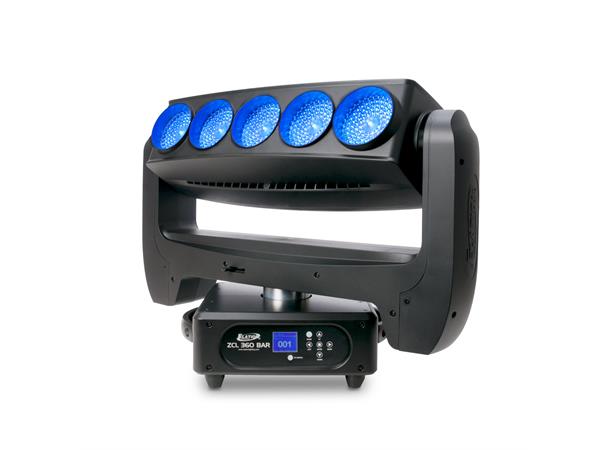

The ZCL 360 BAR™ is a versatile moving zoom bar effect luminaire featuring (5) individual 60W RGBW 4-in-1 LEDs and a zoom range from 4° to 44°. It features fast and precise 16-bit continuous full 360° pan and tilt rotation, full individual pixel control, variable dimming curves, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET (DMX over Ethernet) support, locking 3/5pin DMX in/out, locking RJ45 ethernet in/out, and locking power in/out connections, flicker free operation for TV and Film, 6 button control full color 180° reversible menu display, 530W max power consumption and a multi-voltage universal auto switching power supply (100-240V).
"
FEATURES
Versatile Moving Zoom Bar Effect Luminaire
Zooming Collimator Lens
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Wide 4° To 44° Zoom Range
(5) Pixel Control RGBW 4-in1 LEDs
Variable Dimming Curves
Flicker Free Operation for TV and Film
KlingNET™ and Art-NET (DMX over Ethernet)
RDM – Remote Device Management
SOURCE
(5) 60W RGBW 4-in-1 LEDs
100,000 Hour Average Lamp Life*
PHOTOMETRIC DATA
25,230 LUX 2,344 FC @ 9.8’ (3m) (Min. Zoom)
819 LUX 76 FC @ 9.8’ (3m) (Max. Zoom)
EFFECTS
Individual Pixel Control
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves
COLOR
RGBW
CONTROL / CONNECTIONS
(3) DMX Channel Modes (19 / 21 / 37)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement

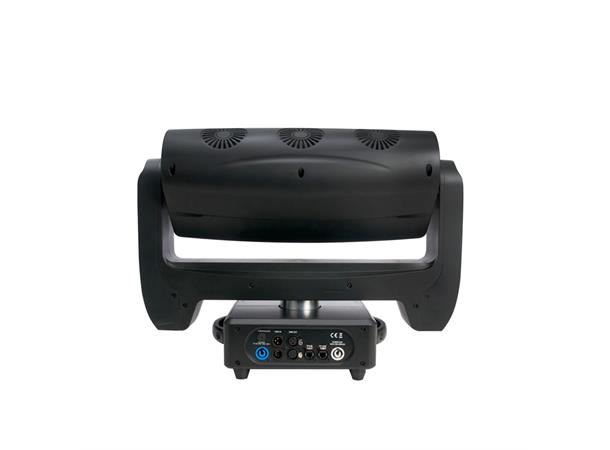

Locking 3/5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out (KlingNET™ / Art-NET)
Locking Power Connector In/Out
SIZE / WEIGHT
Length: 25.11” (638mm)
Width: 10.24” (260mm)
Vertical Height: 18.0” (459mm)
Weight: 53.0 lbs. (24.0 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
530W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1521000297 Touring Case 2x ZCL 360 Bar
1521000298 Touring Case 4x ZCL 360 Bar
1521000299 PRO Case 2x ZCL 360 Bar
1521000300 PRO Case 4x ZCL 360 Bar
1322000060 C-Loader II
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
"
