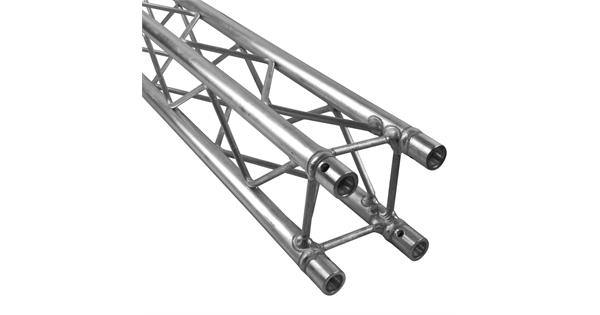

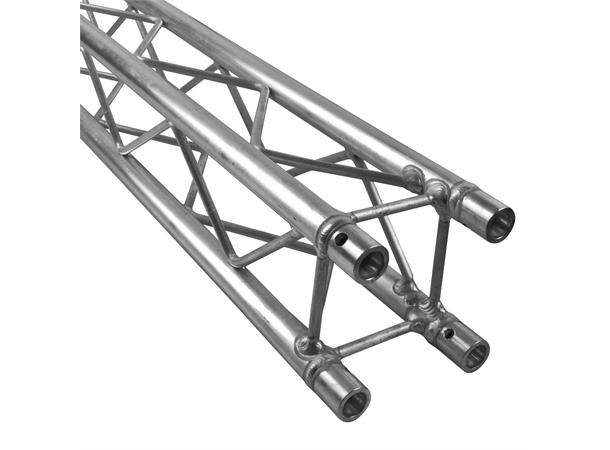

DuraTruss DT 14-050 - 4-Point Truss
The DT14 system of DuraTruss is a decorative truss system. The DT14 is connected through a conical connection (spigot), trusspin and safetyclip. The DT14 is suitable for shops, displays or even at home as a decorative object. Through a boxcorner you realize 90° angles in all directions. There are several baseplates available for stability and protection of your floor.
Positives:
- Decorative
- Easy to pair with box-corner (MJB)
- Easy installation
- Low weight
- Space saving during transport
Width: 100mm
Height: 100mm
Diameter: 20mm
Technical Data:
Tube Diameter: 20mm x 2mm (0.8 x 0.08 inch)
Cross brace diameter: 6mm (0.24 inch)
Material: Alloy EN-AW 6082 T6 (AIMgSi1 T6)
The DT 14-100 will be delivered with 4 spigots, 8 truss pins and 8 safety clips!
