Specifications
Source:
• 1X250W WW LED
• 50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometric Data:
• 13,643 Total Lumen Output (Full ON, Zoomed OUT)
• 64,538 LUX 5,956 FC @ 2m (Zoomed IN)
• 10,373 LUX 963 FC @ 2m (Zoomed OUT)
• 97.0 CRI, 86 R9 @ 2m (Zoomed IN)
• Beam Angle 10° - 37°
• Max Field Angle 47.5°
• Color Temperature: 3000K
Effects:
• Motorized Zoom
• Electronic Dimmer and Strobe (1-20Hz)
• Variable 16-bit Dimming Modes and Curves
Control and Connections:
• Dimmer and Zoom Rotary Dials
• (4) DMX Channel Modes (2 / 4 / 6 / 8)
• 4 Button Control Panel LCD Menu Display
• RDM (Remote Device Management)
• 3/5pin DMX and Locking Power Cable In/Out
• USB Service Port
Dimensions and Weight:
• Length: 414.5mm
• Width: 360.1mm
• Vertical Height: 490mm
• Weight: 9.45kg
Electrical and Thermal:
• AC 100-240V – 50/60Hz
• 273 W Max Power Consumption
• Working temperature: 15°C to 45°C
• Power Linking: 10Pcs @ 240V
Included accessories:
• Gel Frame
• Locking Power Cable

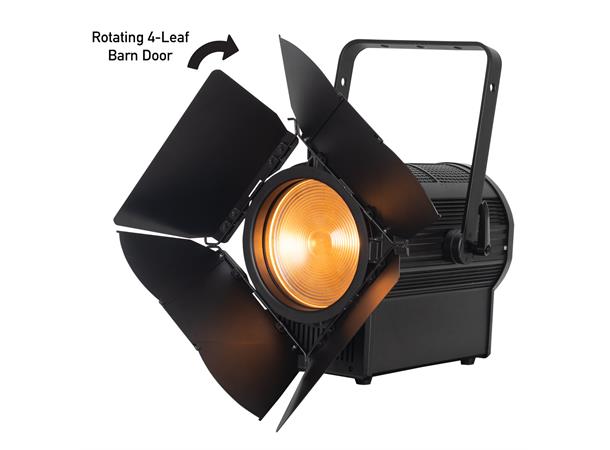

• Barn Doors
approvals and ratings:
• CE | cETLus | IP20
