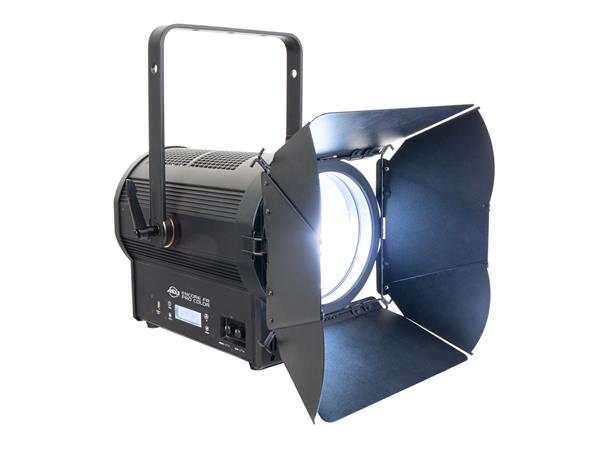

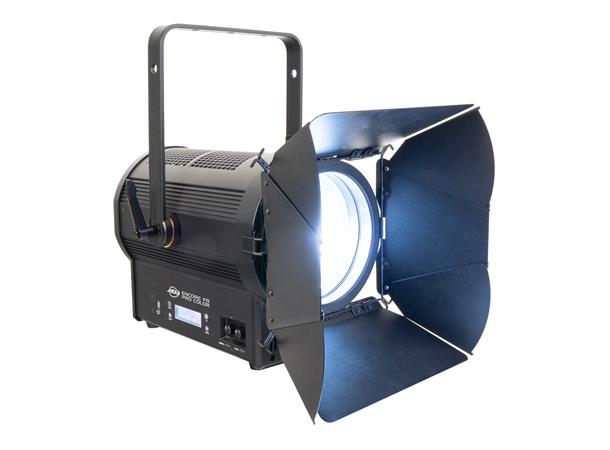

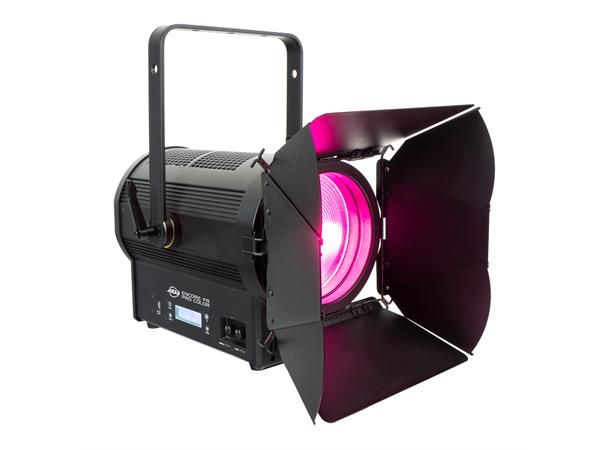

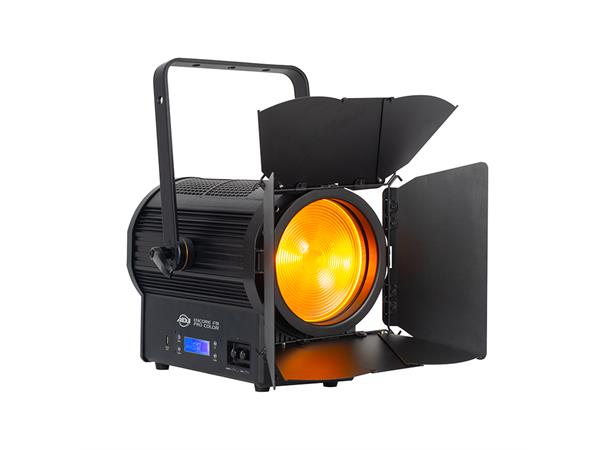

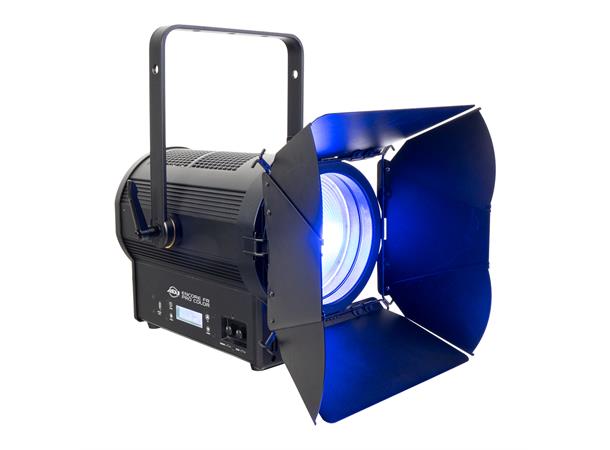

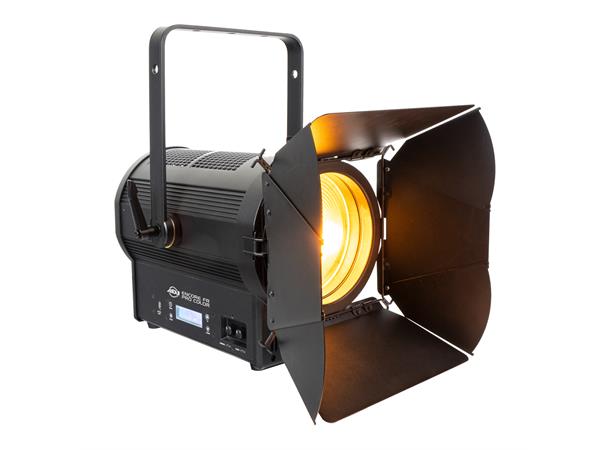

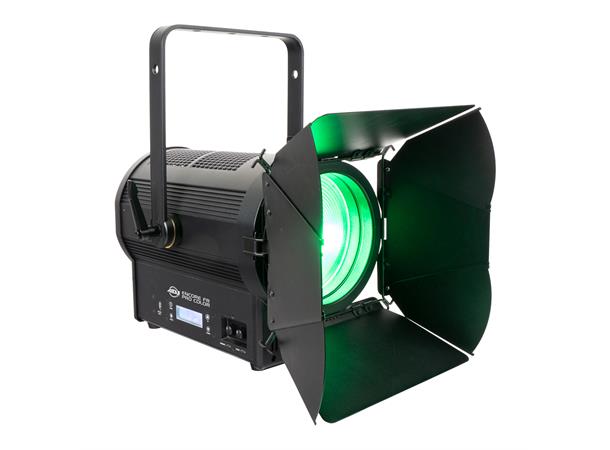

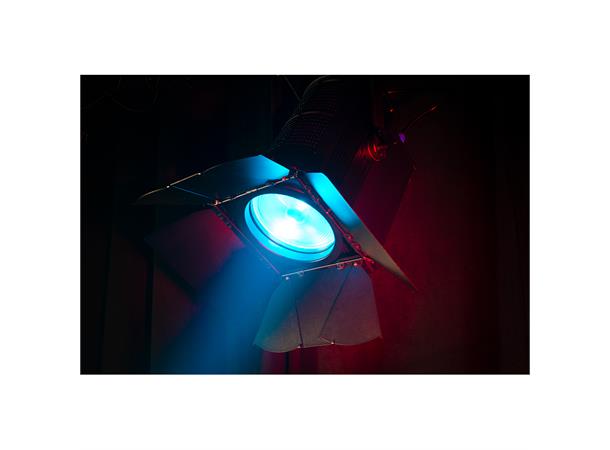

The ADJ Lighting Encore FR Pro Color is a professional grade Fresnel fixture with a 7-inch lens designed for key light, as a fill light and as a back light. It offers a full spectrum of colors with CMY Color Mixing DMX modes, and tunable white color temperatures from 2400K to 8500K. It’s powered by a 400W 6-IN-1 LED engine with red, green, blue, amber, lime and cyan LEDs.
The Encore FR Pro Color has a motorized zoom range of 7~44-degrees, a high CRI rating with an output of more than 11,000 Lumens. There are an abundant of on-board features such as 5 DMX control modes, 6 Dim Curves, preset color macros, and adjustable refresh rates.

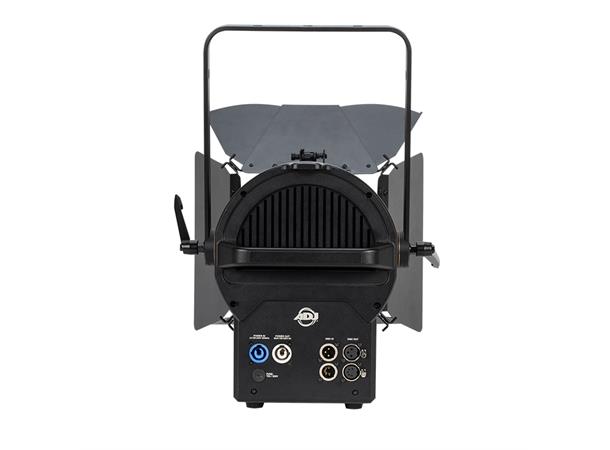

The fixture has DMX-512 and RDM protocols, a USB service port, a 4-Button control panel LCD menu display, 3 & 5-pin DMX In/Out sockets and locking power In/Out to daisy chain power from one fixture to another.

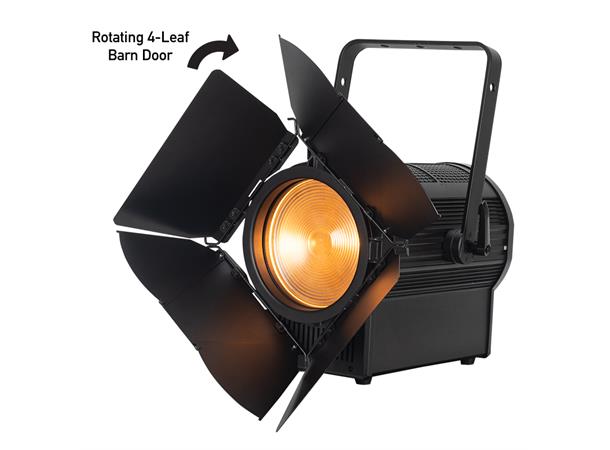

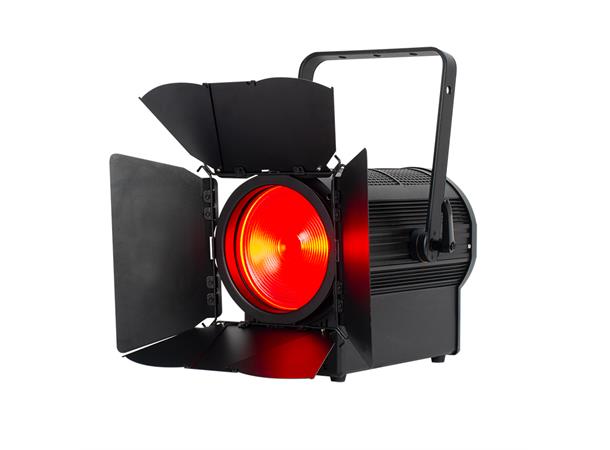

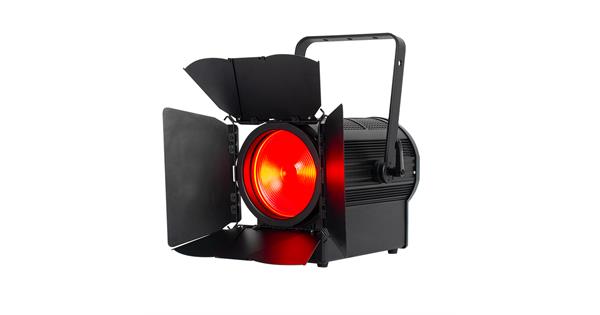

A rotating 4-leaf barn door, gel frame and power cord are included with the fixture.
SOURCE:
• 1X400W 6-IN-1 LED Engine (Red, Green, Blue, Amber, Lime and Cyan)
• 50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA:
• 11,384 Total Lumen Output (Full ON, Zoomed Out)
• 28,670 LUX 2,664 FC @6.6’ (2m) (Zoomed In / Full ON)
• 3,638 LUX 338 FC @6.6’ (2m) (Zoom Out / Full ON)
• Beam Angle 7° - 44°
• Max Field Angle 53°
• Color Temperature: Tunable, 2400K to 8500K
• CRI: 94+
EFFECTS:
• Motorized Zoom
• Electronic Dimmer and Strobe (1-20Hz)
• Variable 16-bit Dimming Modes and Curves
• Virtual CMY Color Mixing DMX Control Modes
• Tunable White Color Temperature from 2400K to 8500K
• 62 Preset White Color Temp Macros (2400K to 8500K)
• 60 Preset Colors on Virtual Color Wheel
• 64 Preset RGBA Color Macros
CONTROL / CONNECTIONS:
• On-Board Dimmer and Zoom Rotary Control Dials
• (5) DMX Channel Modes (14 / 17 / 19 / 13 CMY / 19 CMY)
• Adjustable Refresh Rate (68 presets from 900 – 25,000Hz)
• 6 Preset Dim Modes (Standard, Stage, TV, Architectural, Theatre and Stage 2)
• Dim Speed Options (0.1s to 10s)
• 6 Dim Curves (Square, Linear, Inv. Squa and S. Curve)
• Flicker Free Operation for TV and Film

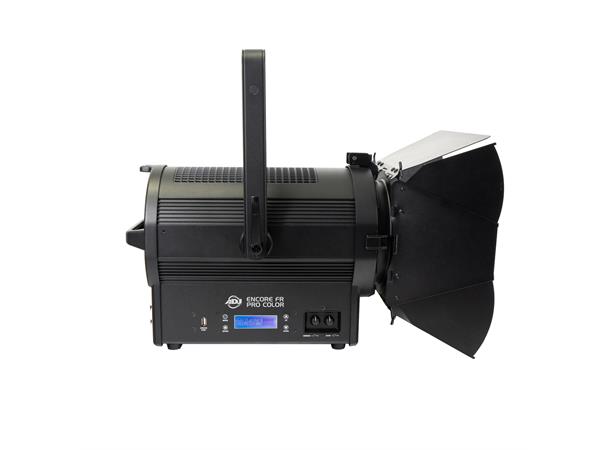

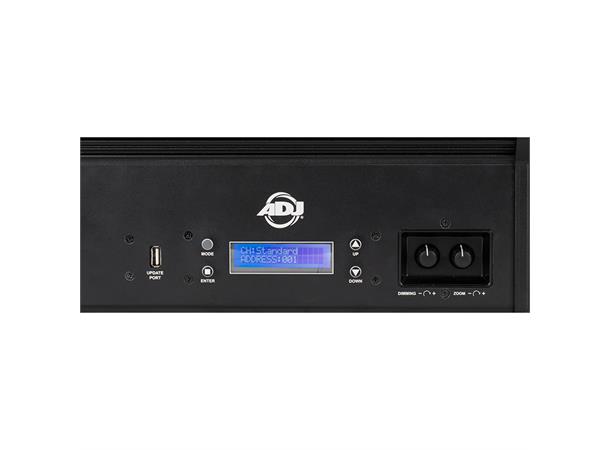

• 4-Button Control Panel LCD Menu Display
• RDM (Remote Device Management)
• 3/5pin DMX Input and Output
• Locking Power Input and Output
• USB Service Port
• With Wired Digital Communication Network
SIZE / WEIGHT:
• Length: 16.32” (414.5mm)
• Width: 14.18” (360.1mm)
• Vertical Height: 19.29” (490mm)
• Weight: 20.9 lbs. (9.45kg)
ELECTRICAL / THERMAL:
• AC 100-240V - 47/63Hz
• 433W Max Power Consumption
• 5°F to 113°F (-15°C to 45°C)
• Power Linking: 2Pcs @ 110V / 5Pcs @ 240V
INCLUDED ITEMS:
• Gel Frame
• Locking Power Cable
• Barn Door
APPROVALS / RATINGS:
• CE | cETLus | IP20
