Encore FR20z

17W LED engine

Varenr: 1237000189
2 354,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
-+
ikke på lager (14 dager)
BeskrivelseTeknisk infoAlternativerSupport
Beskrivelse

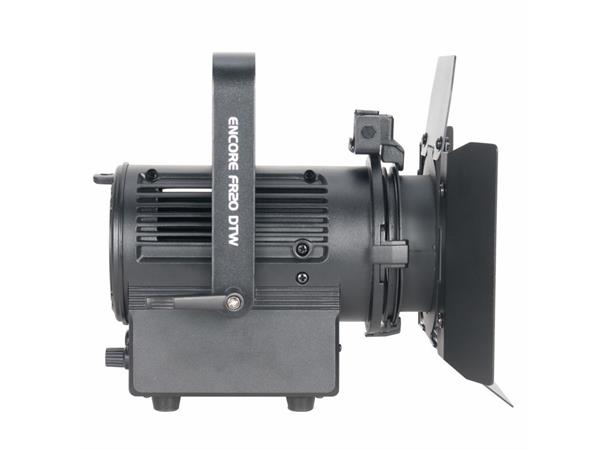

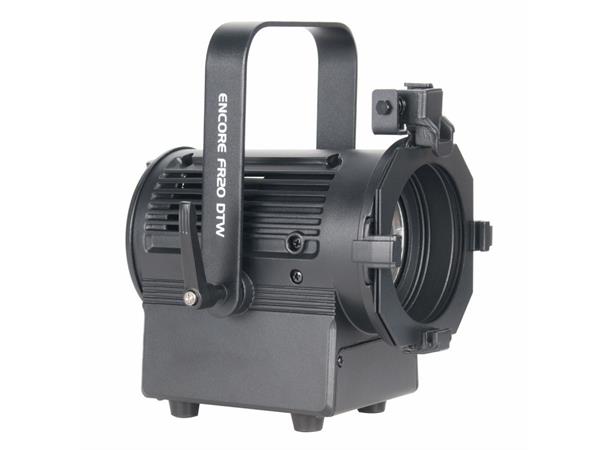

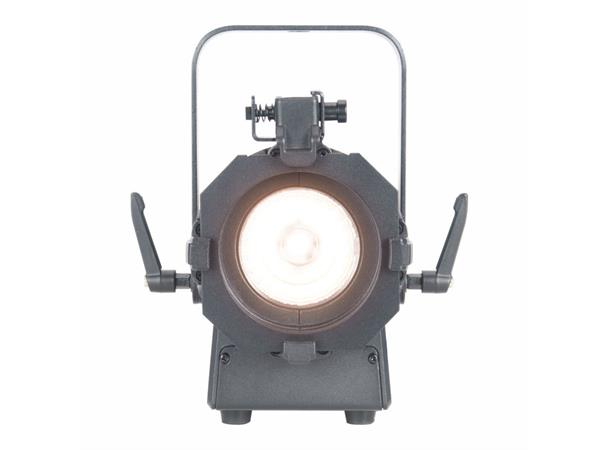

Part of the Encore stage lighting series, the Encore FR20 DTW lighting fixture is equipped with a 2-inch Fresnel lens and powered by a 17W warm white LED engine. It produces a soft-edged beam for stage, theatre and commercial use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual knob to change the dimming from 100% to 0% with a dim to warm feature. It is also Triac dimmable - compatible with ADJ dimmer packs or standard wall dimmers.

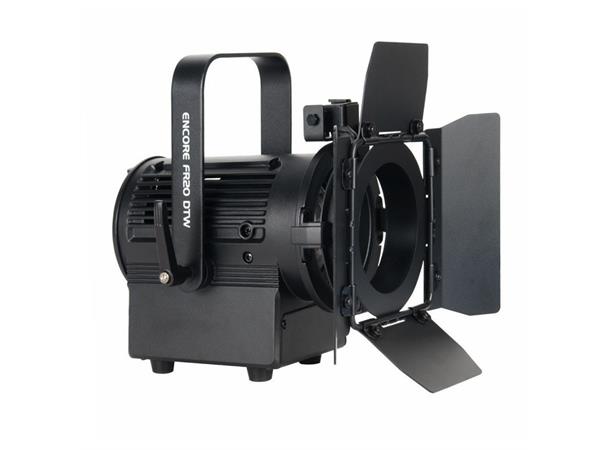

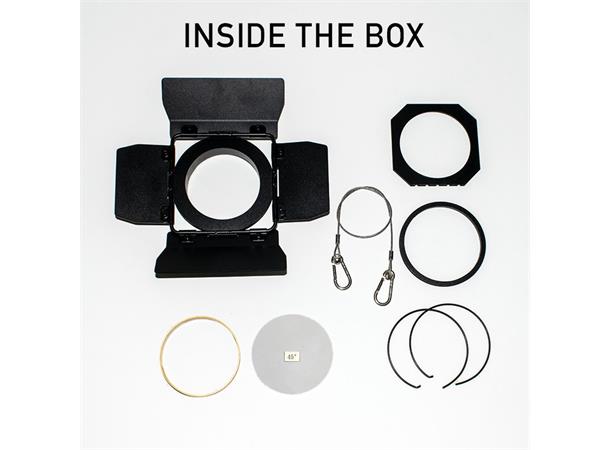

The Encore FR20 DTW comes equipped with a hanging bracket, barn doors to manually shape the beam of light and a additional lens filter to change the beam angle from 19-degrees to 45-degrees.

Specifications:

Source

• Light Source: 1 WW COB-LED

• Individual LED wattage : 17W

• Average LED lifetime : approximately 50,000 hrs.

• Color TemperatAure: 3000K

• CRI: 92


Optics

• Beam Angle: 19 degrees

• Additional 45-degrees Lens-Kit included


Control

• 2 operational Modes : Manual Dimming Potentiometer or DMX Control via external TRIAC Dimmer

• Electronic Dimming: 0 - 100% via potentiometer


Colors

• Warm White 3000K


Construction

• Robust extruded aluminium housing

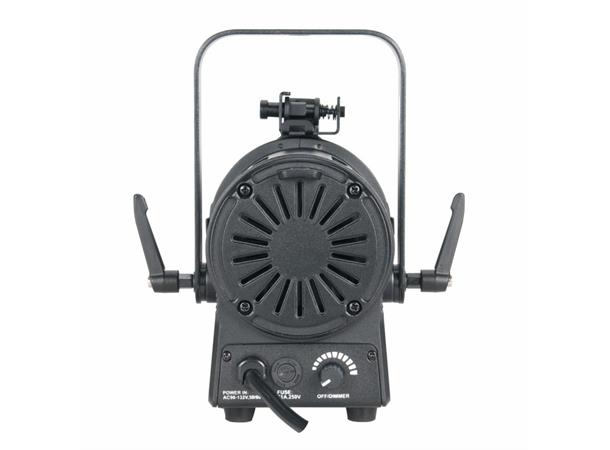

• Manual Dimming knob on rear

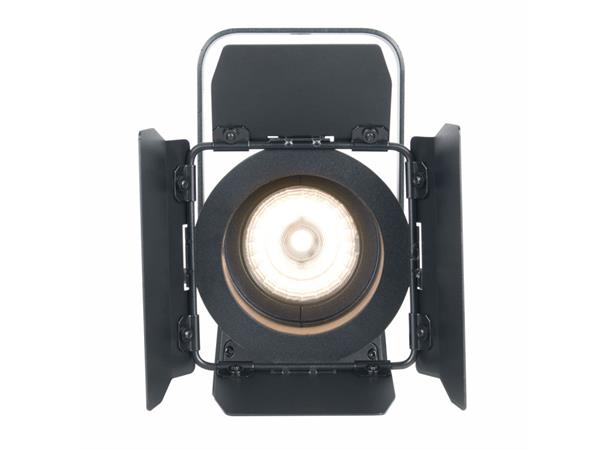

• Barndoors & Gel Filter Frame included


Electrical

• Multivoltage 100-240V 50/60Hz

• Power Consumption: 17W


Connections

• Fixed Power Cable


Dimensions & Weight

• Dimensions (LxWxH):

  Without Barndoors: 185 x 160.89 x 209.85mm

  With Barndoors: 269.21 x 160.89 x 209.85mm

• Weight:

  Without Barndoors: 1,95 kg.

  With Barndoors: 2,25 kg
