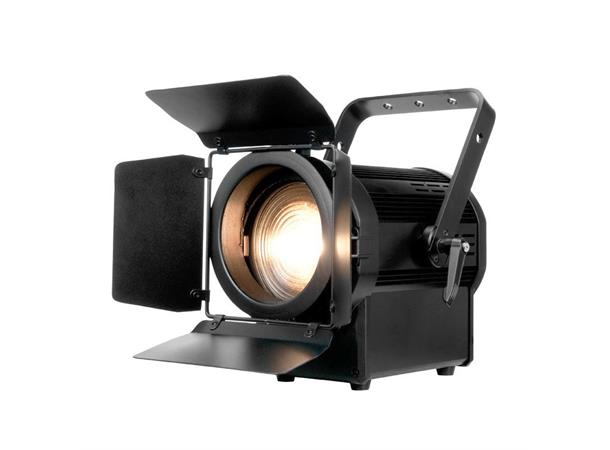

Part of the Encore stage lighting series, the Encore FR150Z lighting fixture is equipped with an 8-inch Fresnel lens and powered by a 130W LED engine. It produces a white wide, soft-edged beam for stage and theatre use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual know to change the beam angle from 15 to 38 degrees.

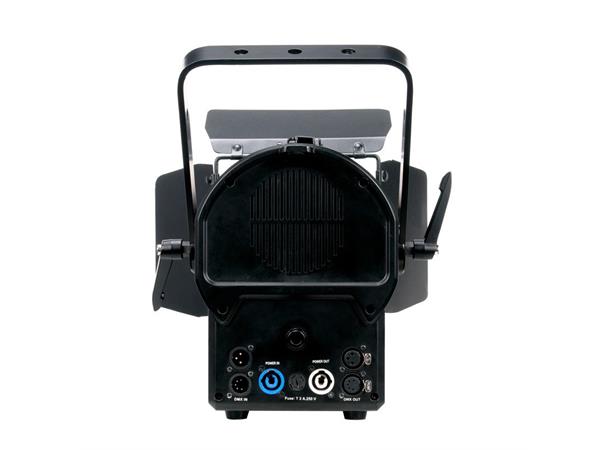

The Encore FR150Z has a 4-button LCD operational menu, 3-pin and 5-pin DMX In/Out and Locking Power In/Out to daisy chain the power from one fixture to another. Specifications:

Source

• Light Source: 1 WW COB-LED

• Individual LED wattage : 130W

• Average LED lifetime : approximately 50,000 hrs.

• Color Temperature: 3000K

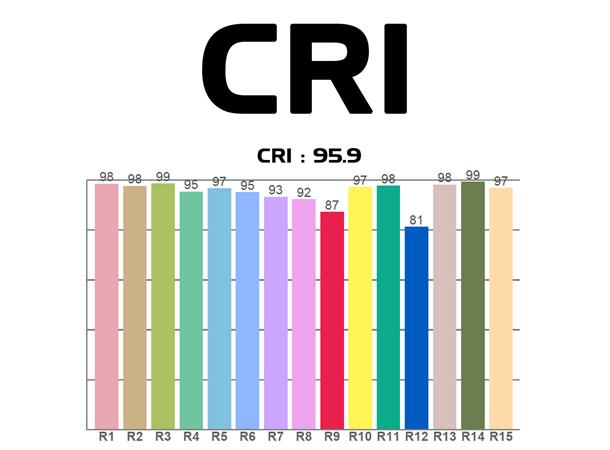

• CRI: 95.9

Optics

• Adjustable Beam Angle: 15-38 degrees

• 8-inch/200mm Fresnel Lens

Control

• 2 operational Modes : Manual WW Dimmer Mode and DMX Control

• 6 DMX Modes: 1, 2, 2-2, 3, 2-3 & 4-channel

• RDM compatible

• 16bit Electronic Dimming: 0 - 100%

• 6 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre & Stage 2)

• Adjustable Gamma Brightness : 1.0/2.0/2.2/2.4/2.8

• LED pulse and strobe effect

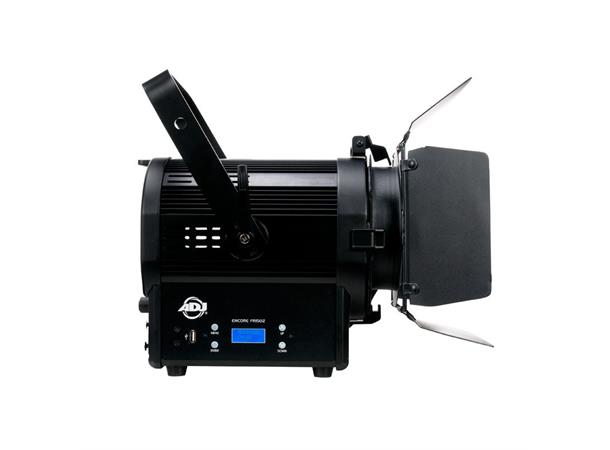

• 4-button, DMX digital display on rear panel

Colors

• Warm White 3000K

Construction

• Robust extruded aluminium housing

• Manual Zoom Knob

• Barndoors included

Electrical

• Multivoltage 100-240V 50/60Hz

• Power Consumption: 150W

Connections

• 3 & 5-pin Locking DMX In/Out connections

• Locking Power In/Out connections

• USB port for Firmware Update

Dimensions & Weight

• Dimensions (LxWxH):

Without Barndoors: 276 x 298.62 x 416mm

With Barndoors: 422.23 x 298.62 x 416mm

• Weight:

Without Barndoors: 6,8 kg.

With Barndoors: 7,4 kg
