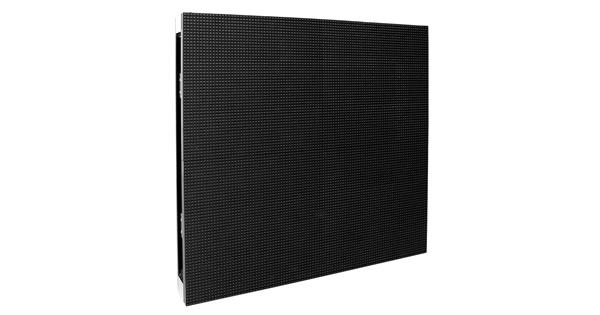

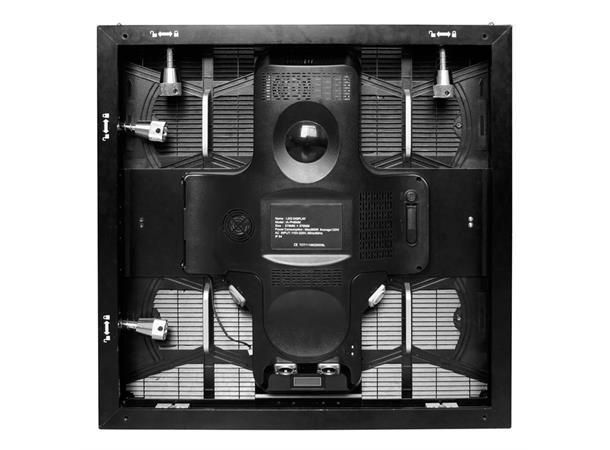

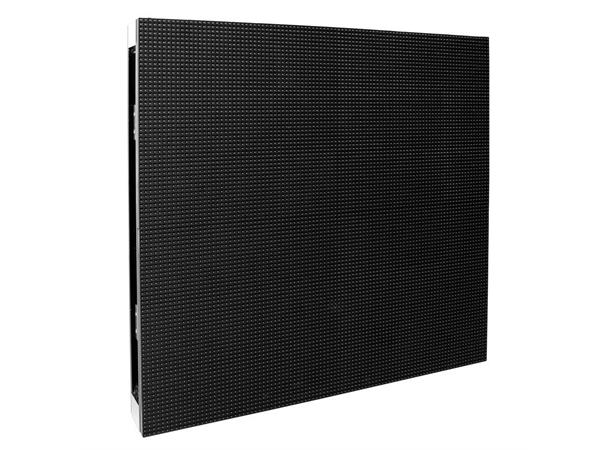

6mm pixel pitch, High Resolution video panel. 576x576mm. Locking Power In & out, Locking RJ45 In & out. Novastar receiving card. IMPROVED MASK FOR HIGHER CONTRAST AND IMPROVED LED FOR BETTER QUALITY AND COLOR CONSISTENCY.

Specifications:

Source

• Light Source: RGB SMD2121 LEDs

• Pixel Density : 96 x 96 pixels, 27777 per square meter

• Average LED lifetime/MTBF : 100,000 hrs./5,000 hrs.

• Pixel Pitch: 6mm

Optics

• Brightness: 1200 NITS

• View Angle: Horizontal 140°/Vertical 140°

• Gray Scale / Display Color: 14-bit

• Brightness Adjustment: 0~100% 100 Levels

• Processing: 14-bit

Control

• Built-In Novastar Receiving Card

• LED Refresh Rate: 1200Hz

• Control Distance: Ethernet Cable <100m or Fiber Optic >120m

• Optional Novastar Sending Cards and Accessories available

Colors

• RGB

Construction

• Aluminium Frame

• Module Quantity: 4

• Module Size : 288 x 288mm

• IP Rating: IP20 (Front & Back)

Electrical

• Multivoltage 100-240V 50/60Hz

• Max Power Consumption: 300W/panel

• Average Power Consumption: 120W/panel

• Operational temperature: -20 to +40 degrees

• Operational humidity: 10% — 90% (no condensation)

Connections

• Locking RJ45 In/Out connections

• Locking Power In/Out connections

Dimensions & Weight

• Dimensions (LxWxH): 576 x 75 x 576mm

• Weight: 10,5 kg.
