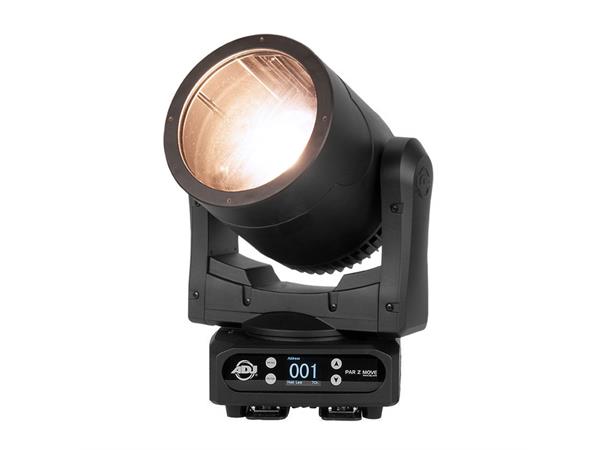

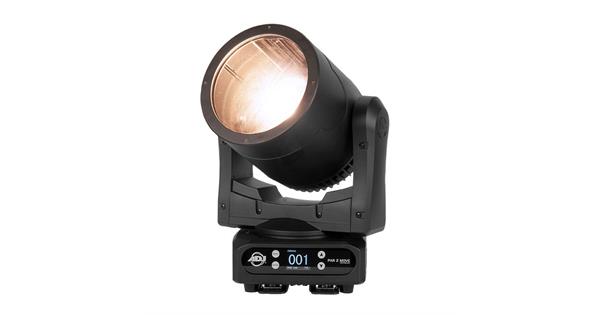

The Par Z Move is the next generation fixture in ADJ’s popular PAR Z100 Series of C.OB. LED Pars. It’s powered by a high output 200W C.O.B. (Chip on Board) warm white LED on a moving head base. Featuring motorized zoom (10 ~ 40-degrees), an easy to install filter slot built-in to the head to add a color gel or diffusion filter, and 0-100% dimming plus 16-bit fine dimming for stages, theaters, churches, nightclubs, concert venues and event productions.
There are a variety of professional features such as: DMX and RDM control, pan & fine pan, tilt & fine tilt and a color display with 4 buttons to easily access all the built-in functions. Locking Power In/Out to daisy chain the power and Locking 3-pin and 5-pin DMX IN/Out give lighting designer the best networking options on the market. There is a also a built-in USB port to easily update the software if needed. Specifications:
Source
• Source: Warm White COB-LED
• Individual LED wattage : 200W
• Average LED lifetime: approx. 50,000hrs
• LED Color Temperature: 3000K
• CRI: 96
Optics
• Motorized Zoom: 10 ~ 40-degrees
Control
• 3 DMX channel modes: 7, 9 & 11 channels
• RDM compatible (Remote Device Management)
• 16-bit Dimming
• 16-bit Pan 540o
• 16-bit Tilt 200o
• 6 Dim Curves: Standard/Stage/TV/Architectural/Theatre or Stage2
• Adjustable Gamma Brightness
• Strobe & pulse effects
• Color display with touch buttons
Colors
• Warm White 3000K
Construction
• Plastic housing
• Quicklock Omega Brackets included
Electrical
• Multi-voltage operation: 100-240V, 50/60Hz
• Maximum power draw: 250W

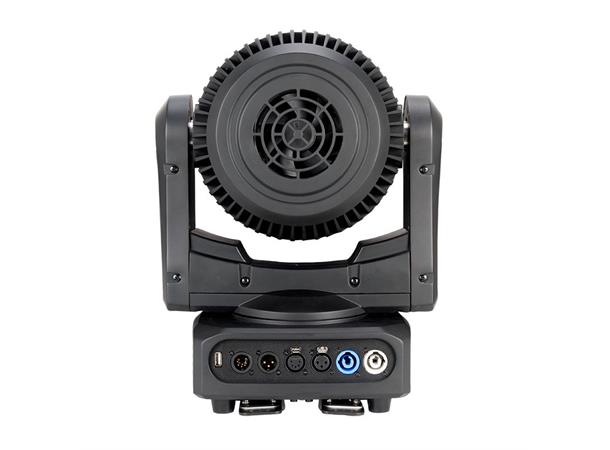

Connections
• Data In/Out: 3 & 5-pin DMX
• Power In/Out: Locking Power
• USB Service Port for firmware updates
Dimensions & Weight
• Dimensions (LxWxH): 306 x 218 x 448mm
• Weight: 11,3 kg.
