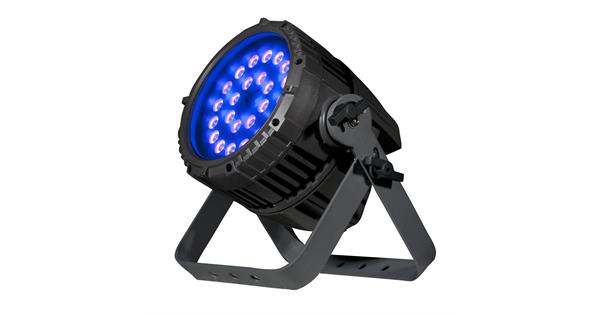

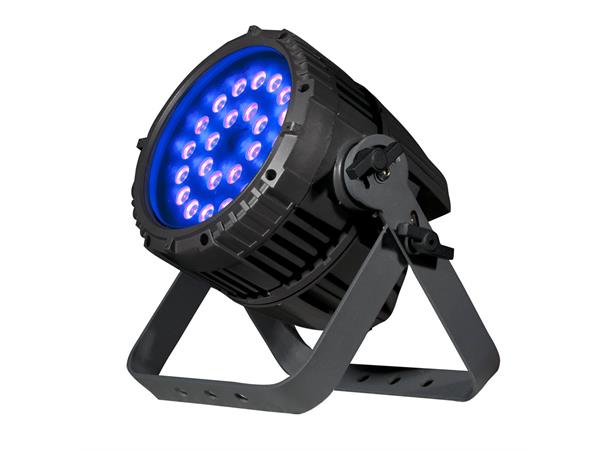

The UV 72IP produces a high intensity ultraviolet light designed for outdoor performance stages, theatrical performances and special effects productions. This all metal, IP65 outdoor rated professional fixture features ADJ’s WiFLY EXR wireless DMX and is powered by twenty-four 3W UV LEDs.
The UV 72 IP is equipped with a 4-button DMX digital display, IP65 Locking Power to daisy chain power and 3-pin DMX IP rated In/Out connections. Includes a scissor yoke allows fixture to be hung or set on the ground. Specifications:
Source
• Light Source: 24 UV LEDs
• Individual LED wattage : 3W
• Average LED lifetime : approximately 50,000 hrs.
• UV wavelength : 390-410nm
• PWM : 1000Hz
Optics
• Beam Angle: 33 degrees, field angle 60 degrees
Control
• 3 operational Modes : Manual UV Dimmer Mode, AutoFade Mode and DMX Control
• 3 DMX Modes: 1, 2 & 3-channel
• RDM compatible (Remote Device Management)
• Electronic Dimming: 0 - 100%
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre)
• LED pulse and strobe effect

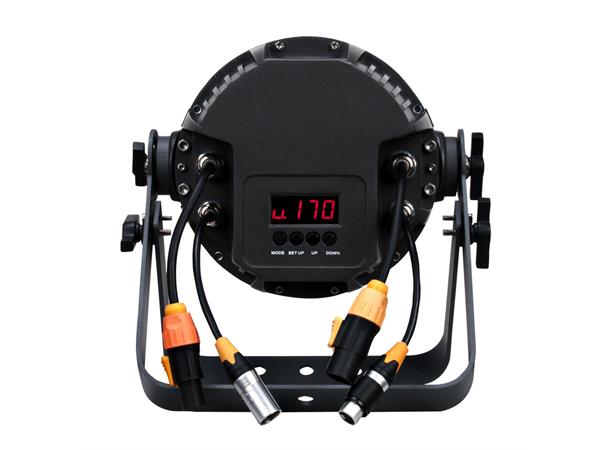

• 4-button, DMX digital display on rear panel
• Built-in WiFly EXR Wireless DMX
Colors
• UV (390-410nm)
Construction
• Metal Housing
• IP rating : IP65
• Scissor yoke
Electrical
• Multivoltage 100-240V 50/60Hz
• Power Consumption: 84W

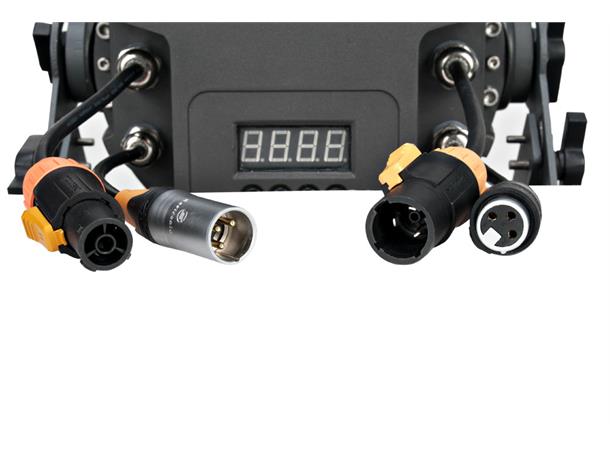

Connections
• 3-pin IP65 Locking DMX In/Out connections
• IP65 Locking Power In/Out connections
Dimensions & Weight
• Dimensions (LxWxH): 270 x 350 x 380mm
• Weight: 5,5 kg.
