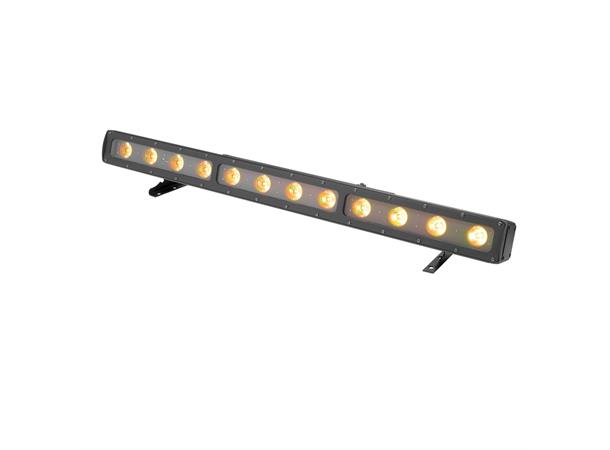

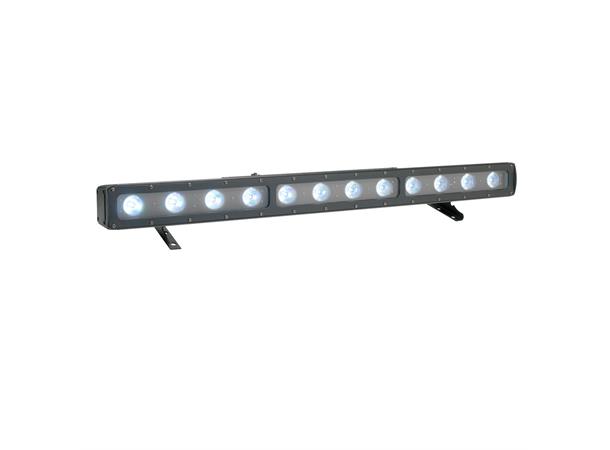

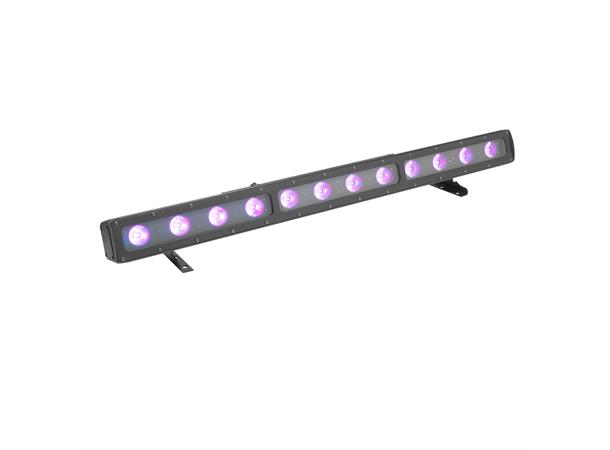

The WiFLY EXR QA12BAR IP is a 1-meter LED linear fixture made of robust metal and is IP65 outdoor rated. It features 12 Quad RGBA LEDs of 5W each, built-in WiFly EXR wireless DMX transmission up to 760M, 3 Zone RGBA control, built in programs, adjustable brackets/feet and IP65 rated DMX and Power In/Outs. It is also compatible with the wireless RF remote control RFC from ADJ. Specifications:
Source
• 12 RGBA QUAD LEDs
• Individual LED Wattage: 5W
• Average LED lifetime: 50,000 hrs
• LED Refresh Rate 1kHz for flicker free operation
Optics
• Beam Angle : 25 degrees
Control
• 6 Operational modes: Static Color, RGBA Dimmer Mode, Color Change, Color Fade, Auto Run (Program Run) and DMX Control
• 7 DMX Channel modes: 4, 6, 7, 8, 9, 12 or 14 channels
• 3 Zone RGBA control
• 16 Color Change Modes
• 16 Color Fade Modes
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
• Built-In WiFly EXR wireless DMX

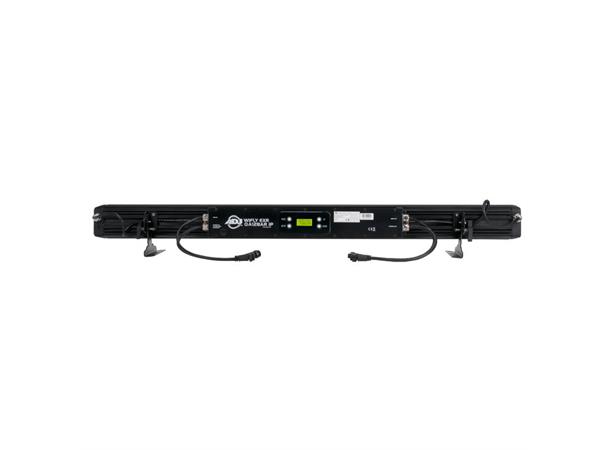

• 4-button DMX menu display on rear panel
Colors
• RGBA Color Mixing
• 63 built-in Color Presets
Construction
• Aluminium Metal Housing
• IP65 Rating
• 2 adjustable brackets/feet
Electrical
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Power Draw: 75W total (All LED's @ Full On)

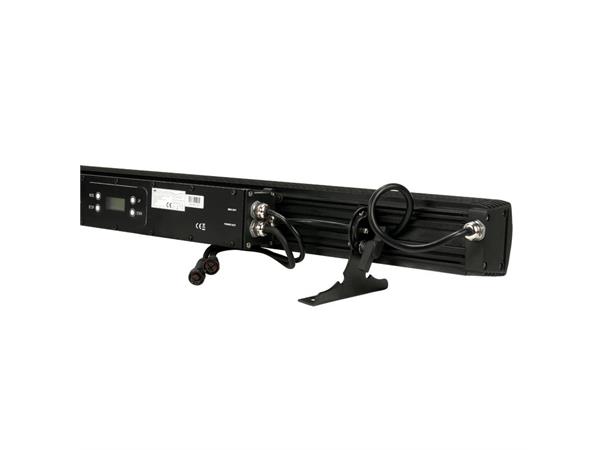

Connections
• 4-pin proprietary IP65 Power In/Out connections
• 3-pin proprietary IP65 DMX In/Out connections
Dimensions & Weight
• Dimensions (LxWxH): 1029 x 140 x 152mm
• Weight: 6,4kg.
