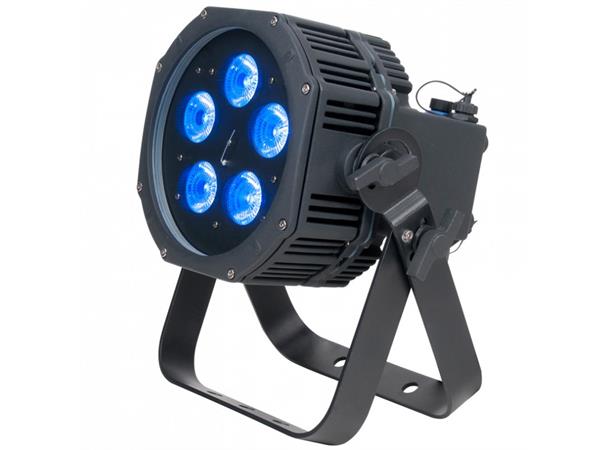

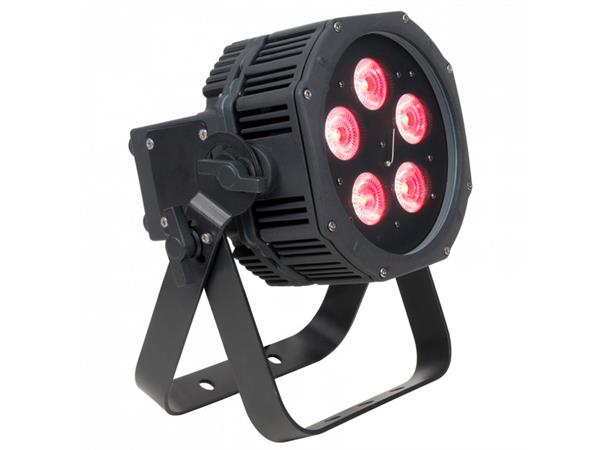

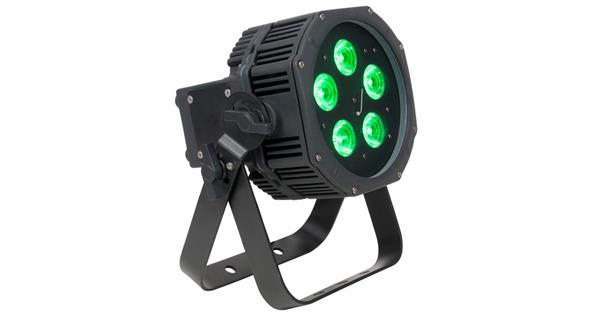

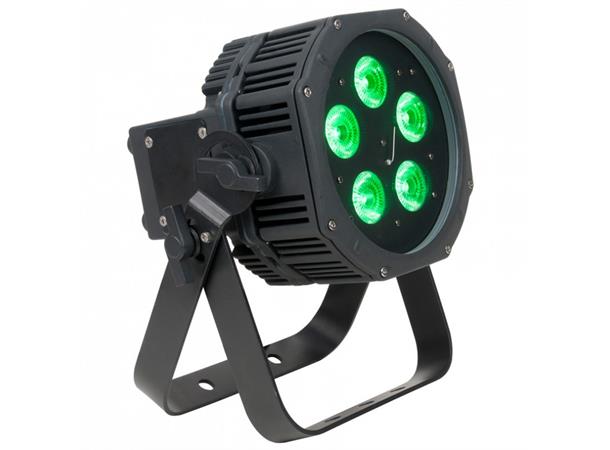

The ADJ WiFLY EXR HEX5 IP is an IP65 outdoor rated compact, battery powered Wash Fixture with ADJ’s WiFLY Transceiver with wireless DMX built-in. It offers the power of 5x 10-Watt RGBWA+UV Hex LEDs (Red, Green, Blue, White, Amber, & UV) to create rich hues and smooth color mixing for stage or wall washing. ADJ’s WiFLY Transceiver will communicate up to 760m(open line of sight) with the WiFLY EXR HEX5 IP.
This fixture uses LEDs rated at 50,000 hours with a maximum power draw of 56W. DMX addressing may also be changed by the unit’s 4-button LED display, or controlled by a DMX Controller by DMX cabling or via ADJ’s stand alone WiFly Transceivers. Specifications:
Source
• 5 RGBAW+UV HEX LEDs
• Individual LED Wattage: 10W
• Average LED lifetime: 50,000 hrs
• LED Refresh Rate 1kHz for flicker free operation
Optics
• Beam Angle : 40 degrees
Control
• 6 Operational modes: Static Color, RGBAW+UV Dimmer Mode, Color Change, Color Fade, Auto Run (Program Run) and DMX Control
• 5 DMX Channel modes: 6, 7, 8, 11 or 12 channels
• 16 Color Change Modes
• 16 Color Fade Modes
• Electronic Dimming: 0 - 100%
• LED pulse and strobe effect

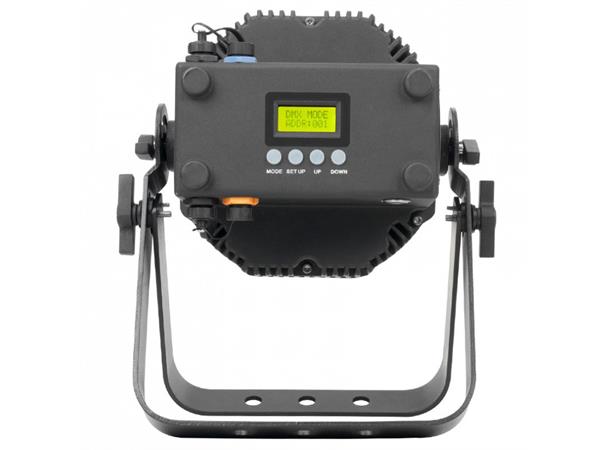

• 4-button DMX menu display on rear panel
• Built-In WiFly EXR wireless DMX
• Compatible with optional ADJ RFC wireless RF remote control
Colors
• RGBAW+UV Color Mixing
• 63 built-in Color Macros
Construction
• Aluminium Metal Housing
• IP65 Rating
• Scissor yoke
Electrical
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Power Draw: 56W total (All LED's @ Full On)
• Energy Saving Mode

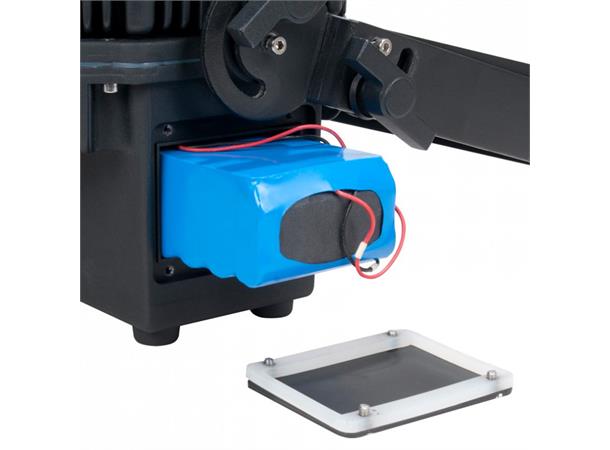

• Battery
Battery Type: Fixed Lithium Battery
Battery Energy: 146.52WH (Watt Hours)
Battery Weight: 0.84kg
Battery Voltage: 22.2V
Battery Capacity: 6.6AH
Total Lithium Ion Cells: 18pcs
Battery Wrap Material: PVC Sleeving + Highland Barley Paper
Battery Charge Time: 5 Hours (With Power Switch Off)
Battery Life: Up to 20 hours (With Full Charge)
Battery Lifetime: Average Lifetime is 500 Charges (This depends on charging frequency)
Connections
• 4-pin proprietary Power In/Out connections
• 3-pin proprietary IP65 DMX In/Out connections
Dimensions & Weight
• Dimensions (LxWxH): 310 x 280 x 194mm
• Weight: 5,48kg.
