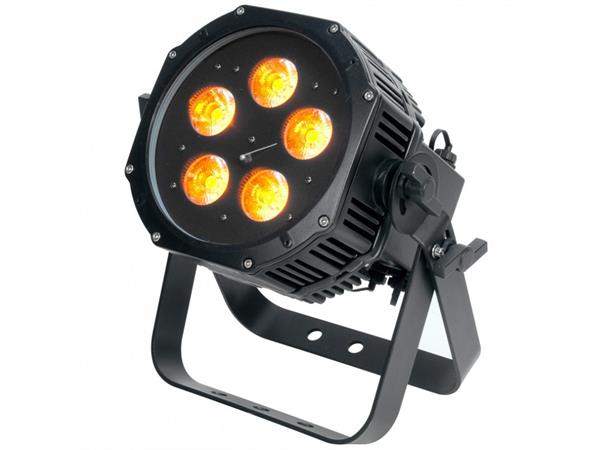

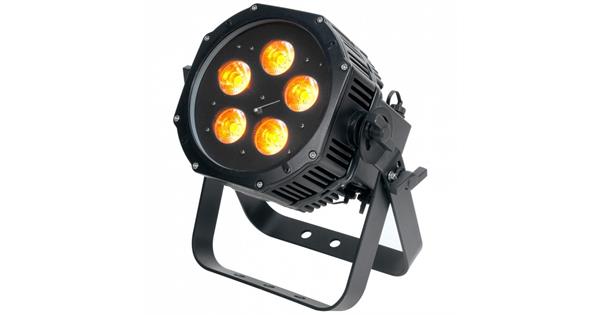

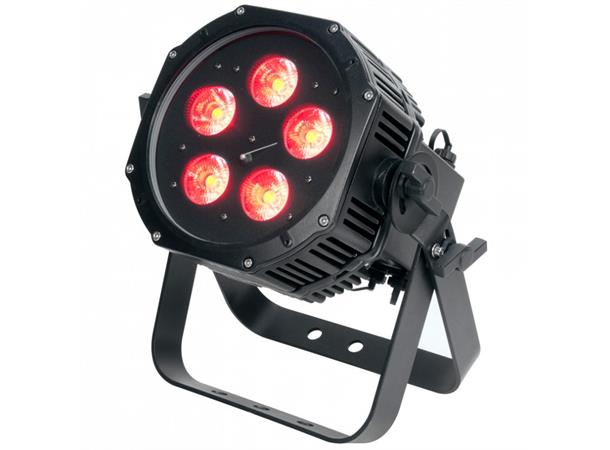

The ADJ WiFLY EXR QA5 IP is an IP65 outdoor rated compact , battery powered Wash Fixture with ADJ’s WiFLY Transceiver with wireless DMX built-in. It offers the power of 5x 5-Watt RGBA Quad LEDs (Red, Green, Blue & Amber) to create rich hues and smooth color mixing for stage or wall washing. ADJ’s WiFLY Transceiver will communicate up to 2500 feet/760m (open line of sight) with the WiFLY EXR QA5 IP.
This fixture uses LEDs rated at 50,000 hours with a maximum power draw of 50W. DMX addressing may also be changed by the unit’s 4-button LED display, or controlled by a DMX Controller by DMX cabling or via ADJ’s stand alone WiFLY Transceiver.
Specifications:
Source
• 5 RGBA QUAD LEDs
• Individual LED Wattage: 5W
• Average LED lifetime: 50,000 hrs
• LED Refresh Rate 1.44kHz for flicker free operation
Optics
• Beam Angle : 25 degrees
Control
• 6 Operational modes: Static Color, RGBA Dimmer Mode, Color Change, Color Fade, Auto Run (Program Run) and DMX Control
• 5 DMX Channel modes: 4, 5, 6, 10 or 11 channels
• 16 Color Change Modes
• 16 Color Fade Modes
• Electronic Dimming: 0 - 100%
• LED pulse and strobe effect

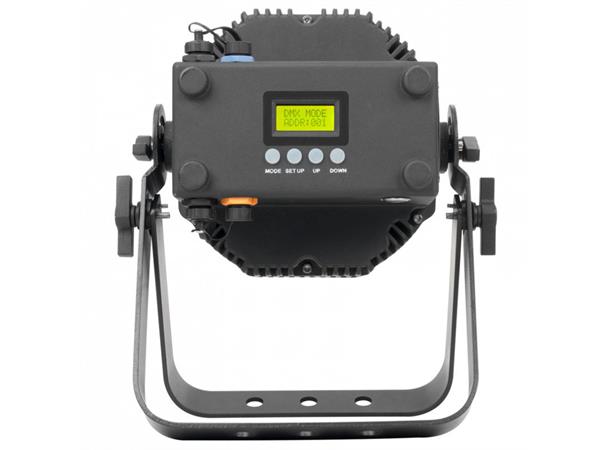

• 4-button DMX menu display on rear panel
• Built-In WiFly EXR wireless DMX
• Compatible with optional ADJ RFC wireless RF remote control (Code 1223200026)
Colors
• RGBA Color Mixing
• 63 built-in Color Macros
Construction
• Aluminium Metal Housing
• IP65 Rating

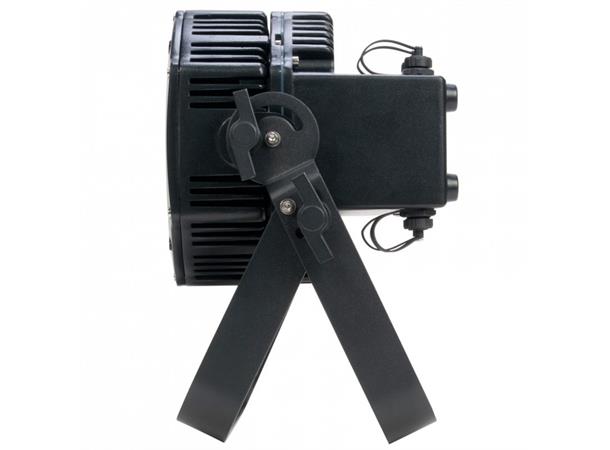

• Scissor yoke
Electrical
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Power Draw: 50W total (All LED's @ Full On)
• Energy Saving Mode
• Battery
Battery Type: Fixed Lithium Battery
Battery Energy: 146.52WH (Watt Hours)
Battery Weight: 0.84kg
Battery Voltage: 22.2V
Battery Capacity: 6.6AH
Total Lithium Ion Cells: 18pcs
Battery Wrap Material: PVC Sleeving + Highland Barley Paper
Battery Charge Time: 5 Hours (With Power Switch Off)
Battery Life: Up to 20 hours (With Full Charge)
Battery Lifetime: Average Lifetime is 500 Charges (This depends on charging frequency)
Connections

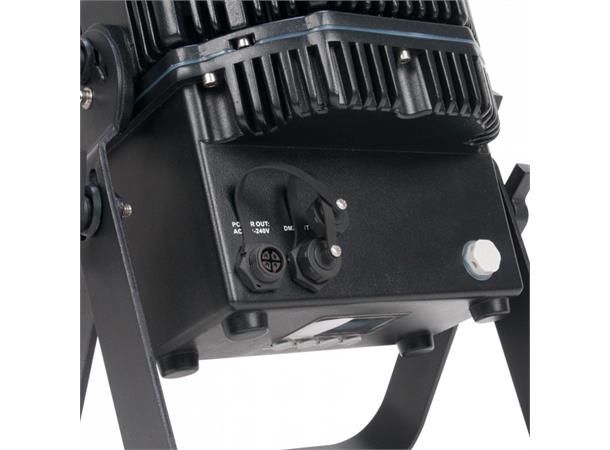

• 4-pin proprietary Power In/Out connections
• 3-pin proprietary IP65 DMX In/Out connections
Dimensions & Weight
• Dimensions (LxWxH): 310 x 280 x 194mm
• Weight: 5,48kg.
