Specifications:
Source:

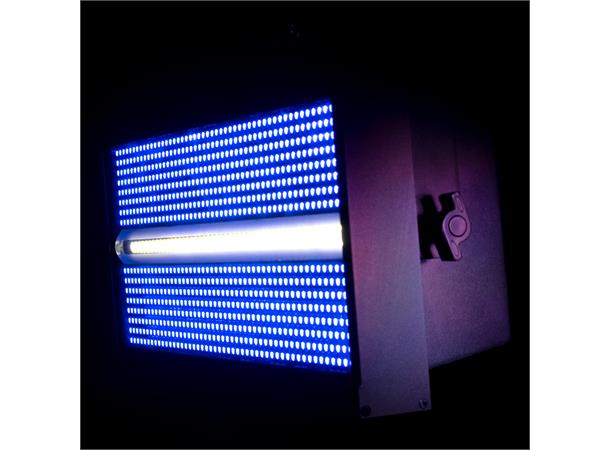

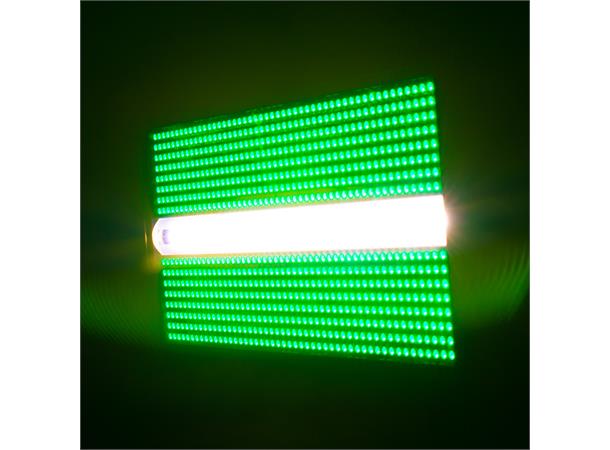

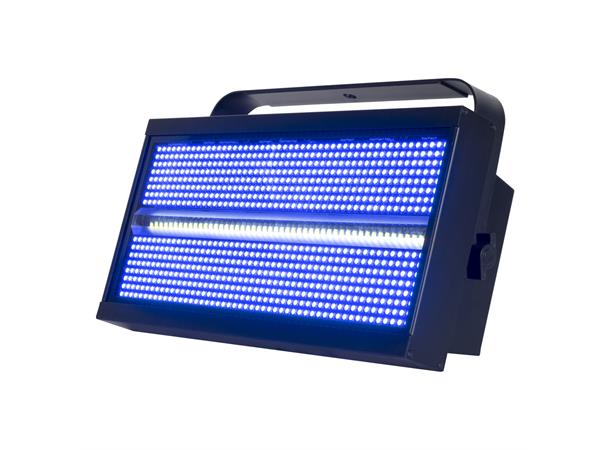

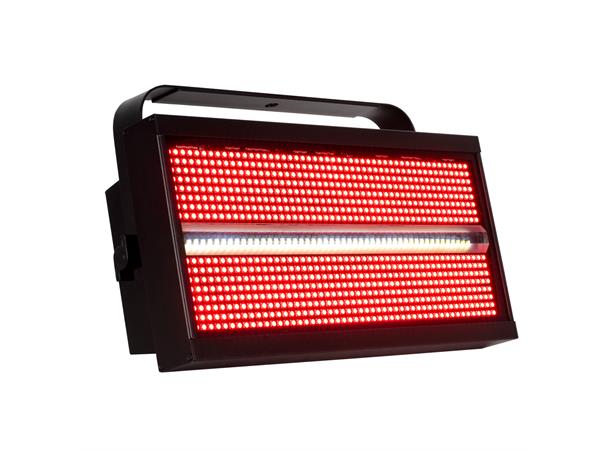

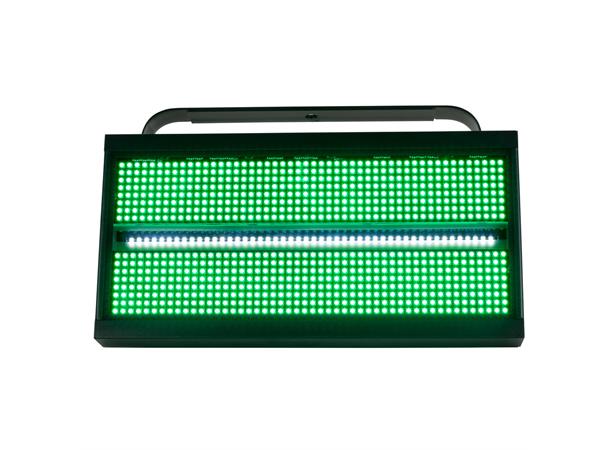

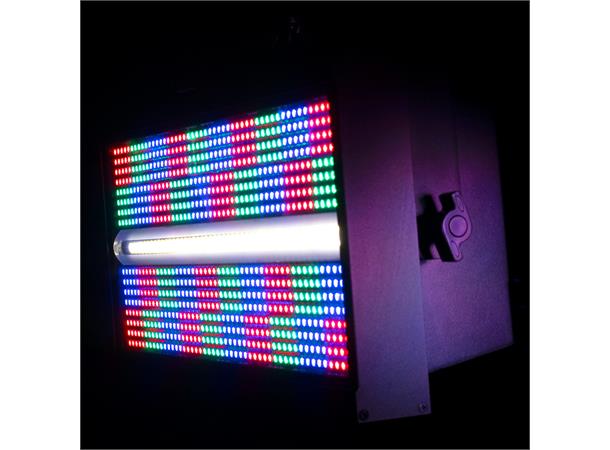

• 800 x 0.3W RGB SMD LEDs + 48 x 5W Cool White SMD LEDs
• RGB LEDs: 121 Degree Beam Angle
• Cool White LEDs: 89 Degree Beam Angle
• Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White: 6500-7000K
• 50,000 Hour Average LED Life
Features:
• 40 x RGB LED zones
• 6 x Cool White LED zones
• 25 built-in RGB LED Program Macros
• 9 built-in Cool White LED Program Macros
Control:
• Control Protocol: DMX
• 11 DMX Modes: 6, 9, 13, 18, 36, 40, 126 and 146 channels
• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• Dim Speed control (0.1~10 Seconds)
• 0-100% Smooth Dimming
• Strobe, shutter & pulse control
• Max Strobe Rate 25Hz. Min Strobe Rate: 0.35Hz.
• Adjustable LED Refresh Rates (900~25kHz)
• Display: LCD display with 4-button touch menu

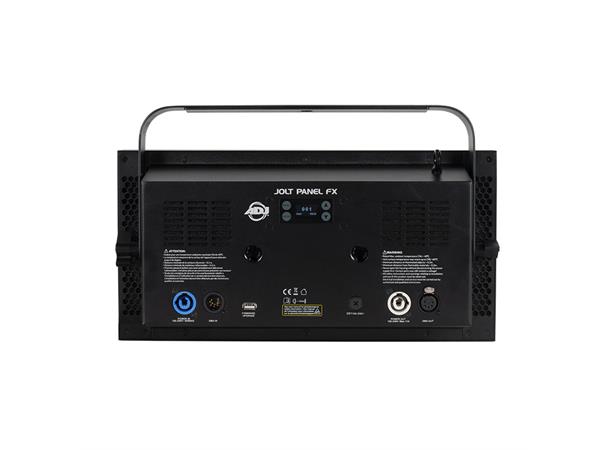

Connections:
• Data: 5-pin DMX In/Out

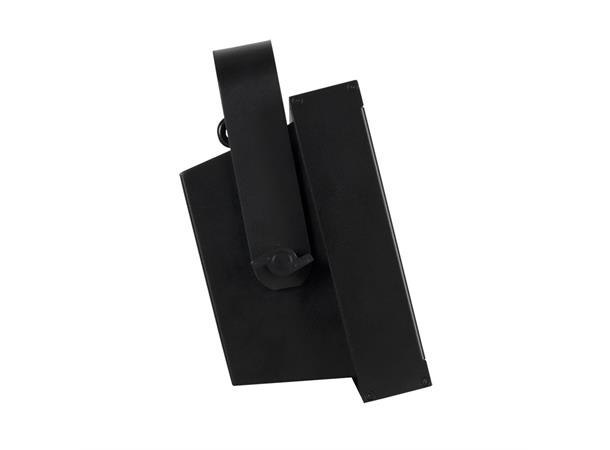

• 180 degree mounting bracket system
• Ready for Omega Bracket (Sold Separately)
• Power locking power in/out
Electrical:
• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 275W (1.4A@230V~50Hz)
Dimensions / Weight:
• Length: 160mm
• Width: 405mm
• Height: 250mm
• Weight: 6kg
