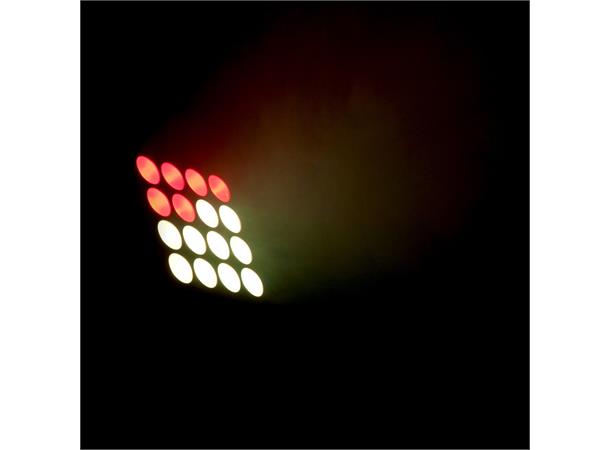

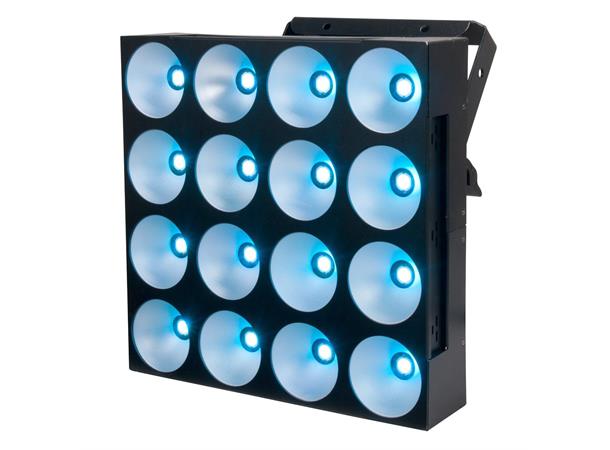

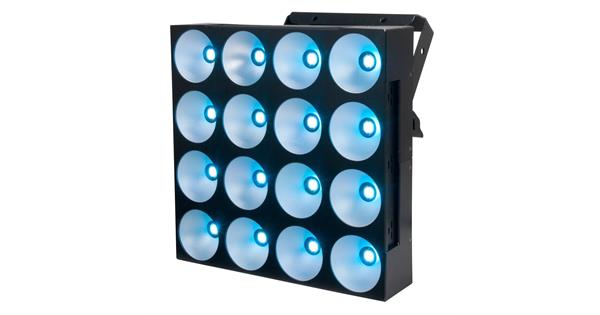

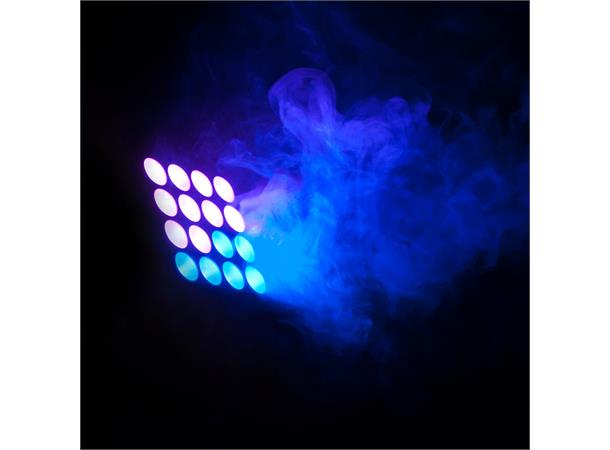

ADJ’s Dotz Matrix is a 4x4 Wash/Blinder fixture with advanced COB LED technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a super-charged, high output, wash fixture with smooth color mixing powered by sixteen 30W TRI COB RGB-LEDs. Dotz Matrix also has Pixel Mapping capabilities for stunning visual effects, and boasts a powerful 480 Watts with a massive 60 degree beam angle.
The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, built-in shows and colors macros, a 4-button DMX LCD display, locking Power connector In/Out, 5 selectable Dim Curves for stage lighting, 4 Pixel Flipping options, and 5 DMX channel modes. Dotz Matrix may run in its stand-alone mode from built-in programs, sound actively or from a DMX Controller.
Specifications:
Source
• Light Source: 16 RGB COB-LEDs (Red, Green, Blue)
• Individual LED wattage : 30W
• Average LED lifetime : approximately 50,000 hrs.
Optics
• Beam Angle: 60 degrees
Control
• 4 operational Modes : Program Mode, Sound Active, Color Macro Mode and DMX
Control
• Pixel Control with different pixel flip settings
• 5 DMX Modes: 3, 6, 7, 48 & 53-channel
• RDM compatible
• Electronic Dimming: 0 - 100%
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre)
• LED pulse and strobe effect
• 15 different built-in programs

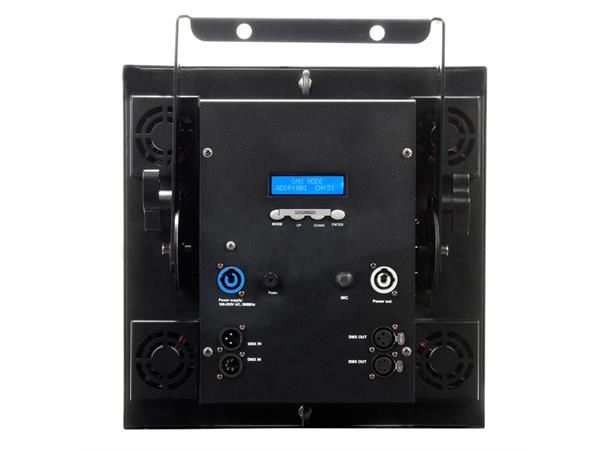

• 4-button, DMX digital display on rear panel
Colors
• RGB Color Mixing
Construction
• Metal Housing
Electrical
• Multivoltage 100-240V 50/60Hz
• Power Consumption: 450W
Connections
• 3 & 5-pin Locking DMX connectors
• Locking Power In/Out connections
Dimensions & Weight
• Dimensions (LxWxH): 345 x 370 x 170mm
• Weight: 7,8 kg.
