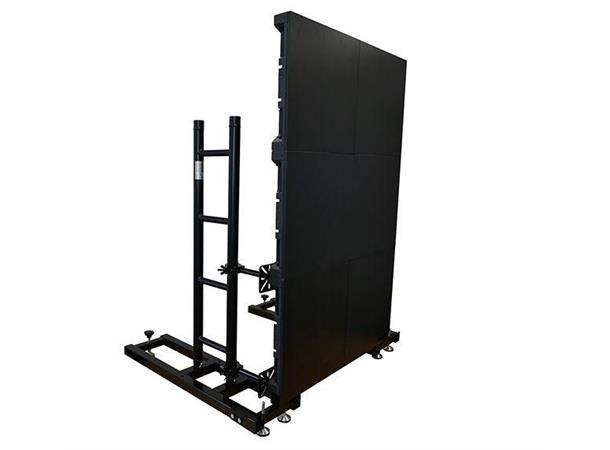

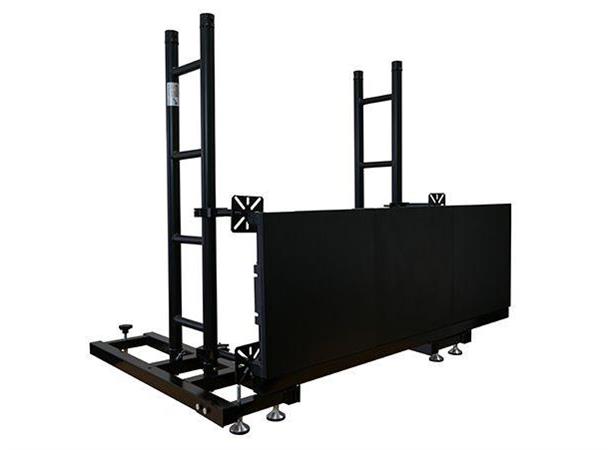

Building your LED screen from ground level is now easy, whatever your type of screen is, Prolyte offers a universal solution, the LED Stack system. This combination of a base-unit, connection bar and ladder truss, creates a very stable system to support you LED screens in various configurations and offers flexibility in height as well as width.
The
- A side entry clamp with the universal connection plate mounted makes it possible to mount almost any type of LED panel quick and easy.
- By using longer connection bars, you can easily extend you screen with another row of panels.
- Using the adjustable feet in the front and back of the base-unit, you can safely level the system, so your screen is completely straight.
LSU series comprises of three solutions to suspend your LED system; H40R, H40V-MB, S52SV- MB all compatible with the regular truss series and one universal solution to build LED walls of different manufacturers, the LED Stack system. All systems offer sound constructive solutions and user safety.
Available ladder truss lengths
- LSU-30L-L050
- LSU-30L-L075
- LSU-30L-L100

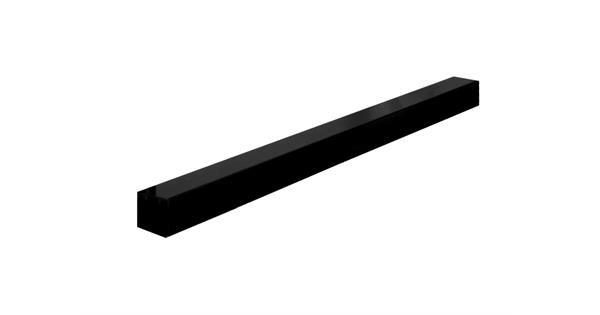

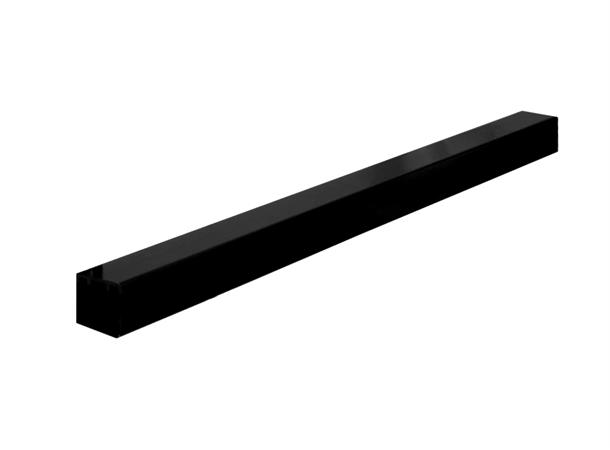

Available connection bar lengths
- LSU-CONB- L100, 1m. length
- LSU- CONB- L150, 1,5m. length
- LSU- CONB- L200, 2m. length

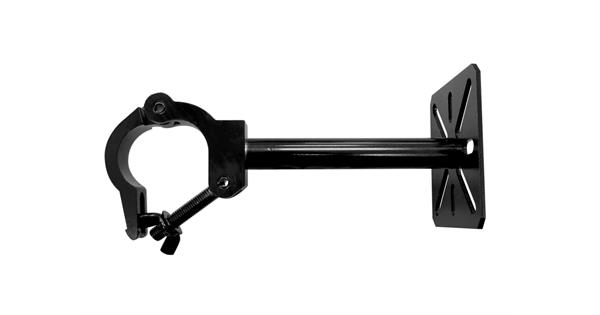

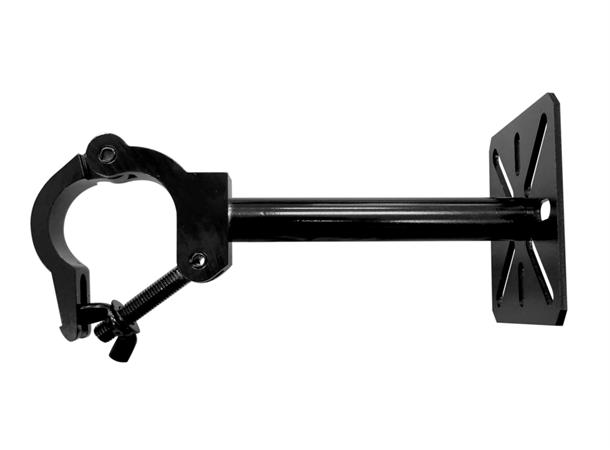

Available LED panel adapters
- LSU-ADAP-03, panel adapter for panels with M8-M12 bolts
