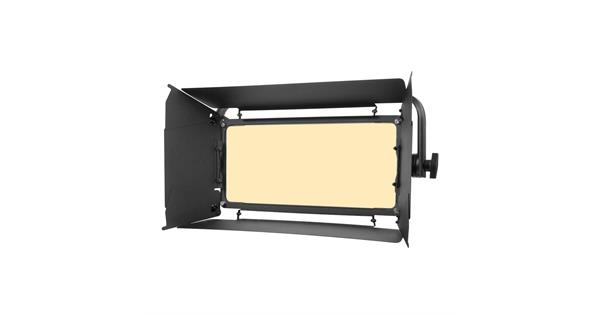

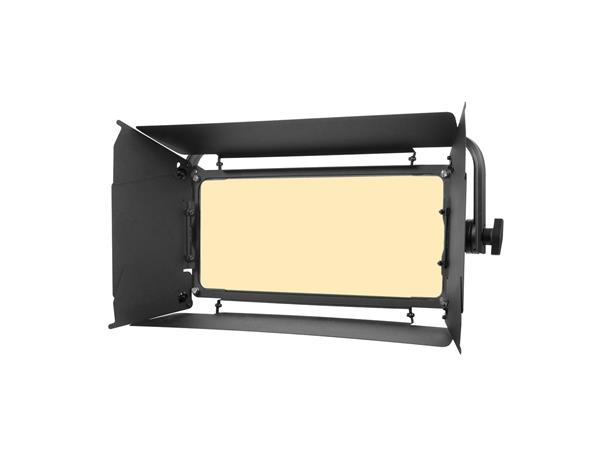

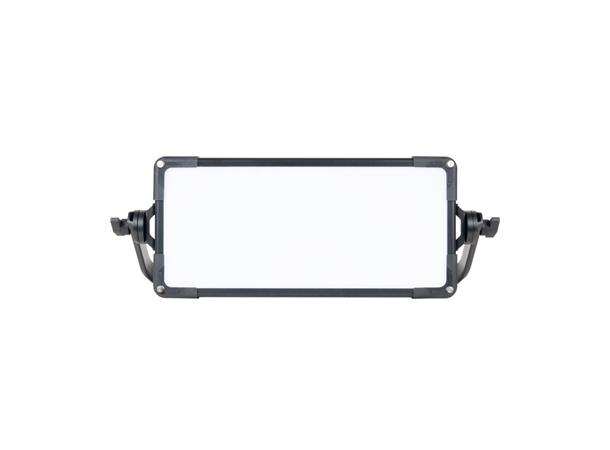

The TVL SOFTLIGHT DW™ is a softlight luminaire featuring (240) Cool White and (240) Warm White LEDs, a 115° beam angle, 8-leaf adjustable / removable barn doors, linear white color temperature range (3,200K - 5,600K), smooth 16bit dimming curve mode effects, adjustable LED refresh frequency and gamma brightness for flicker free operation for TV and FILM, 5pin DMX, RJ45 ethernet (Art-NET), and IP65 locking power connections, (4) button menu control panel, dimmer and color temperature rotary control dials, 180° reversible LCD menu display, and a multi-voltage universal auto switching power supply (100-240v). Optional SNAPGRID 40° light control grid available.

TECHNICAL DATA

FEATURES

Dynamic White 115° Beam TVL Panel SoftLight

Linear White Color Temp Range (3,200K - 5,600K)

Smooth 16bit Dimming and Dimming Curve Effects

Dimmer and Color Temperature Rotary Control Dials

8-Leaf Adjustable / Removable Barn Doors Included

Adjustable LED Refresh Rate and Gamma Brightness

Flicker Free Operation for TV and FILM

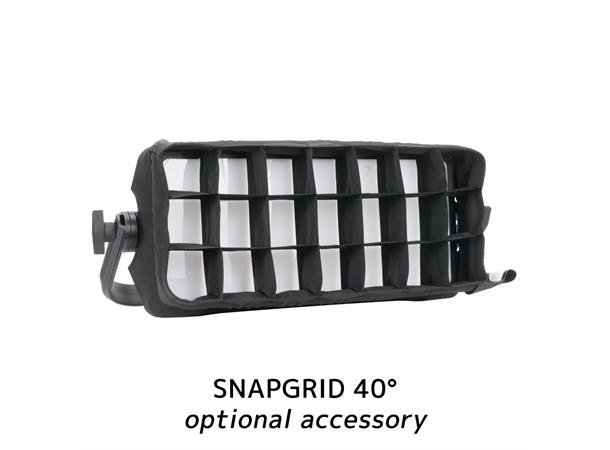

Optional SNAPGRID 40° Light Control Grid Available

SOURCE

(240) Cool White and (240) Warm White LEDs

20,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

>95CRI | 6,700 Total Lumens

575 LUX 53.4 FC @6.6 ft (2m) Full ON 4,200K >95CRI

580 LUX 53.9 FC @6.6 ft (2m) CW 5,600K >96CRI

564 LUX 52.4 FC @6.6 ft (2m) WW 3,200K >95CRI

EFFECTS

3,200K - 5,600K Linear Variable Color Temperature

Electronic Strobe and Variable Dimming Curve Modes

COLOR

Cool White / Warm White

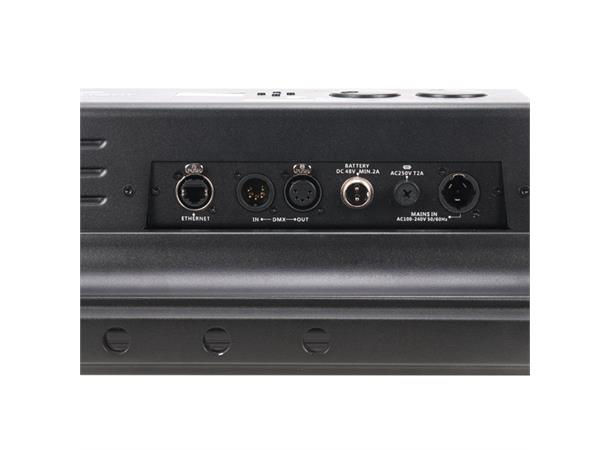

CONTROL / CONNECTIONS

6 DMX Channel Modes (7 total channels)

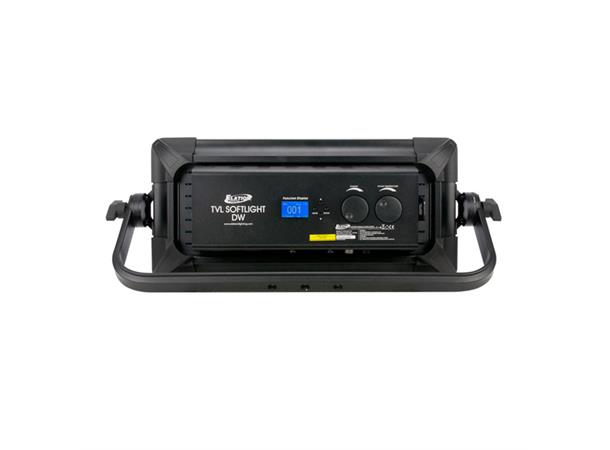

4 Button Control Panel

2 Rotary Control Dials (Dimmer and Color Temperature)

Adjustable Refresh Rate (900-25,000 Hz)

Adjustable Gamma Brightness (2.0-2.8)

180° Reversible LCD Menu Display

5pin DMX In/Out

Stand Alone or Primary/Secondary Set Up

IP65 locking RJ45 ethernet cable

IP65 locking power cable In

With Wired Digital Communication Network

SIZE / WEIGHT

Length: 26.5” (673mm)

Width: 12.4” (315mm)

Vertical Height: 16.7” (425mm)

Weight: 18 lbs. (8.2 kg) (w/barn doors attached)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

99W Max Power Consumption

32F to 104°F (0°C to 40°C)
