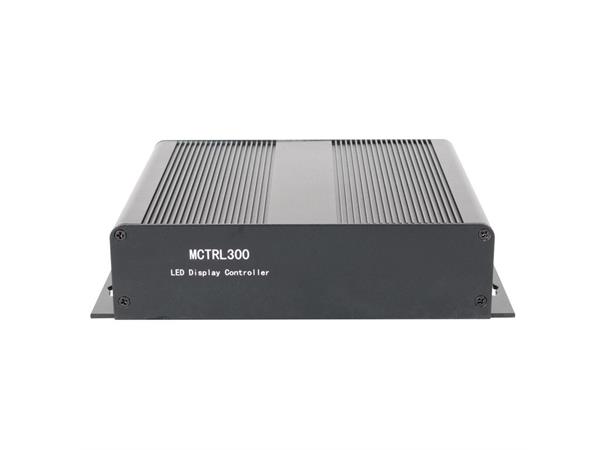

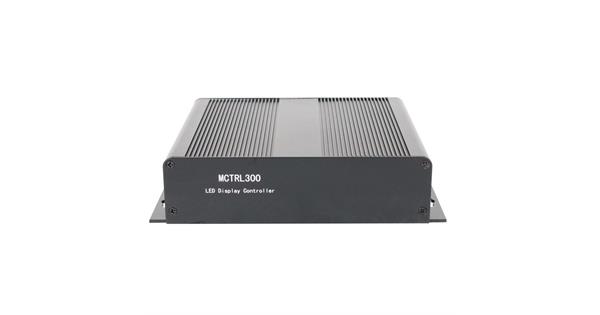

MCTRL300 LED display controller

The MCTRL300 is the Novastar’s smallest LED controller which enables LED displays to be set up within a very short time. The sending card is built into a stable metal housing and is delivered with a DVI input. In addition, the controller has a light sensor connection to which the NovaStar NS060 can be connected for automatic brightness monitoring (available on demand only).

The MCTRL300 is ideal for small to medium-sized LED displays and is compatible with all ADJ Video Panel Series : VS2/VS3/VS5/AV2/AV3/AV4IP & AV6X

This controller is supporting the following resolutions: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668.

Specifications:

Control

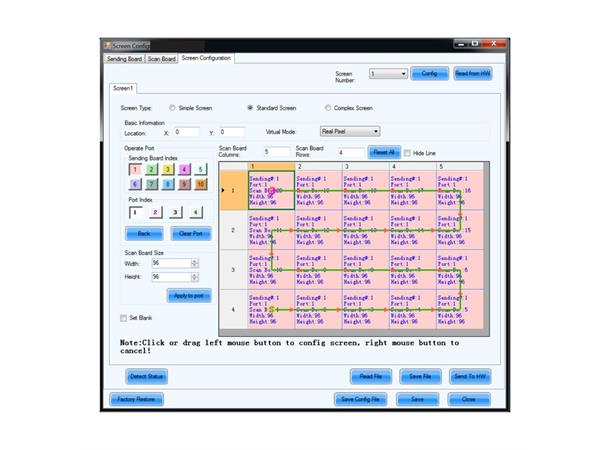

• Detailed control of Video Walls via LCTMars PC-Software

• Brightness Correction : Pixel, Module, Cabinet

• Control Mode: Synchronous Display with Control PC by DVI

• Requires Windows-PC

• Cascading of multiple MCTRL300 via UART

Resolution

• Max resolution capacity : 1.3 million pixels

• Supported resolutions: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668

• Scan Mode 1/12 Duty

• Supported Input : Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI to DVI

Construction

• Aluminium Metal Housing

Electrical

• Multi-voltage operation: AC 100-240V, 50/60Hz

• Power Draw: 10W

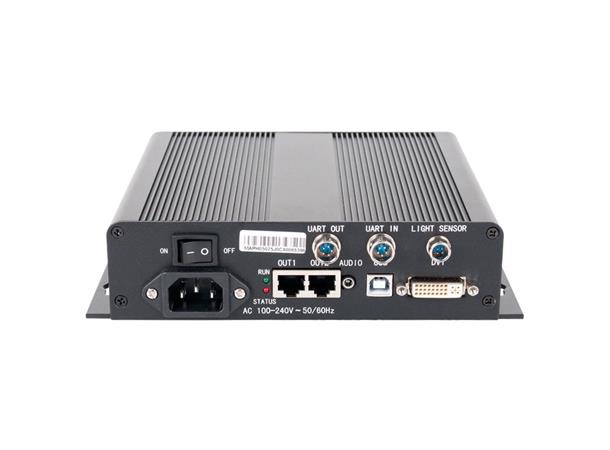

Connections

• Inputs

1x DVI

1x IEC Power connector

1x Light Sensor Connector

1x USB Type B for PC connection

• Outputs

2x RJ45 CAT6 Ethernet Screen outputs (mirrored or independent content or as redundancy)

Dimensions & Weight

• Dimensions (LxWxH): 204 x 160 x 48mm

• Weight: 1kg.
